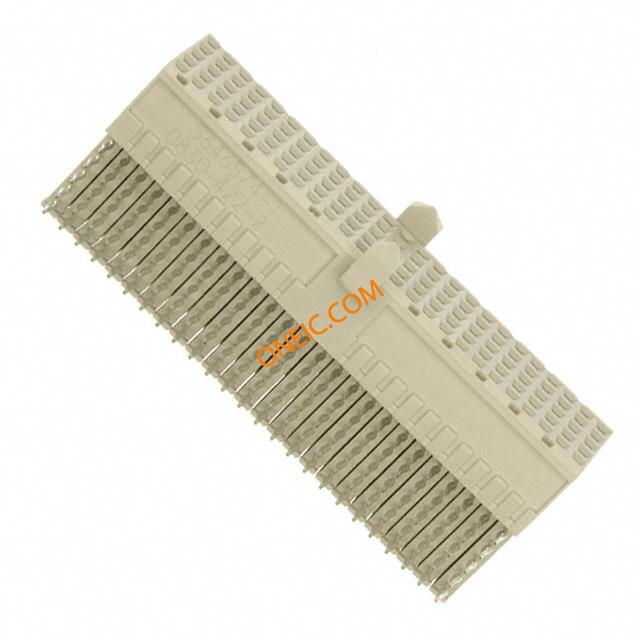

5646574-1
| 制造商 | |
| 描述 | Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 125POS RT ANG 2MM Hard Metric Connectors RCPT 125POS TYPE A/B 2MM Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type A/BReceptacleInterface Type = 2mm HMContact Type = ACTION PIN PostSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK A/B REC ASY 125P 2MMHM |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | 2mm HM | 额定电压 | 500V |
| 数据速率（最大） | ≤1 | 典型衰减 | 标准 |
| 最大额定电流 | 1.5A | ||
机械参数
| 间距 | 2 mm | 长度 | 49.88 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Without |
| 极化 | Polarizing Peg | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type A/B |
| 接触镀层 | Gold Over Nickel | 排数 | 5 |
| 连接器样式 | AB 25 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 49.88 [1.965] |
| 包装数量 | 11 | 面板安装类型 | 直角 |
| 端接样式 | 插座 | 配接方向 | With |
| 触点数 | 125 | 端接表面处理 | Tin |
| 位数 | 125 | 典型触点布局 | ACTION PIN |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 制造商 | 3.3 | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-Pack |
| 卡类型 | 无 | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 列数 | 25 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
