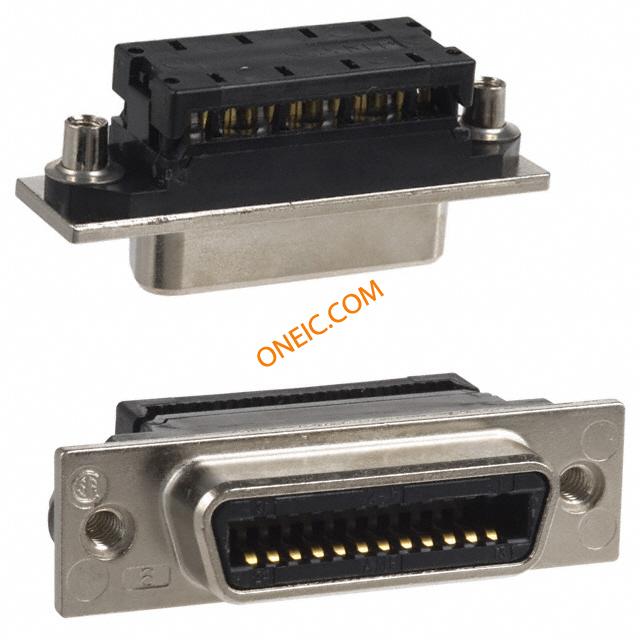

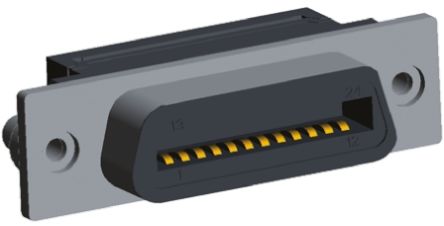

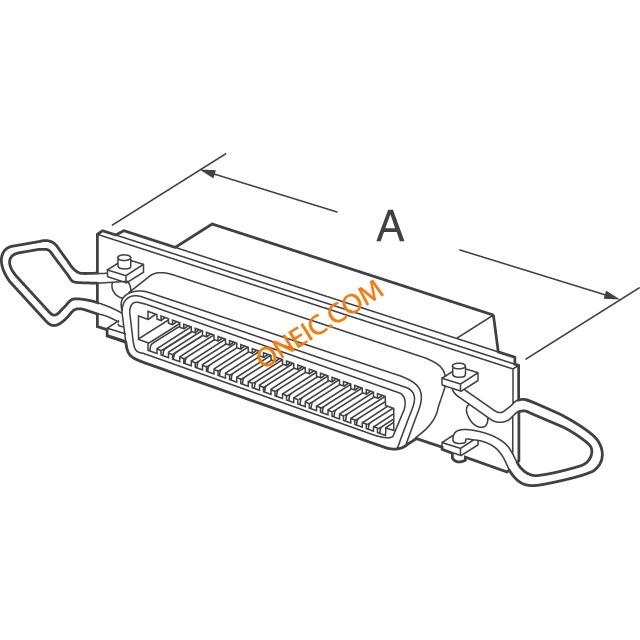

5554434-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port 2.16 [.085] IDC Connectors CONN CHAMP 24 POS RECEPT SHIELD Receptacle 24 way Ribbon cable IDC CHAMP I/O Connectors 24 RCPT Conn IEEE 488 RCP 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24Product Category = ConnectorsReceptacleShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics WIRE-BOARD CONNECTOR, RCPT 24POS 2.16MM CONNECTOR,RECEPTACLE,EMI,24POSITION,SHIELDED,WITHPANELATTACHMENT TE Connectivity CHAMP Latch 系列 2行 24路 直角 母 IDC 连接器 , 电缆安装 EMI RCPT ASSY,24 POSN,SHLD |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 23.62 mm |
| 间距 | 2.16 mm | 高度 | 15.74 mm |
| 重量 | 0.018 | 包装方式 | Tray |
| 电缆类型 | Ribbon Cable | 螺钉尺寸 | 6-32 |
| 屏蔽类型 | With | 端接方式 | IDC |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle |
| 接触镀层 | Gold Flash over Nickel | 法兰特征 | Board Side (6-32) |
| 安装样式 | Cable | 排数 | 2 |
| 绑带材料 | Thermoplastic | 连接器样式 | Outer Shroud Contacts |
| 锁定特性 | Screwlocks | 外形（宽 x 高） | Standard |
| 屏蔽材料 | Die Cast Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 56 mm |
| 包装数量 | Preassembled | 面板安装类型 | With |
| 主要材料 | D-Ribbon | 端接样式 | IDC |
| 触点数 | 24 | 接触件端接 | :IDC / IDT |
| 位数 | 24 | 排距 - 配合 | 1.27 [0.050] |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Boss is a 1.02 [.040] shoulder on front of shield. | 类型 | IEEE 488 |
| 连接器性别 | RCP | 系列 | :Champ |
| 产品特性 | Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 适用产品/相关产品 | 554434-1 | ||
