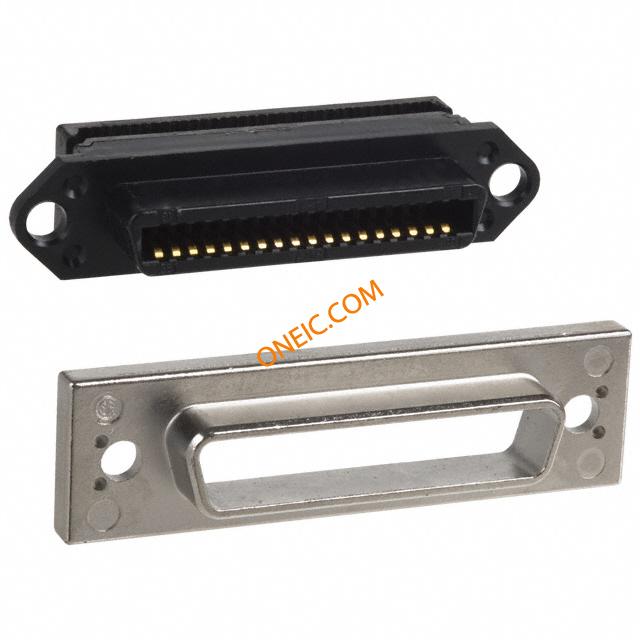

5554348-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 36 POS 1.27mm Solder ST Thru-Hole 36 Terminal 1 Port Loose Piece D-Sub Standard Connectors EMI RCPT ASSY 36POS SHLD EMI RCPT ASSY 36POS SHLD |
| 分类 |
商业参数
| 标准包装规格 | 50 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 间距 | 1.27 mm | 包装方式 | Tray |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 法兰特征 | Hollow, Unthreaded | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 位数 | 36 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 产品特性 | Shielded | ||
