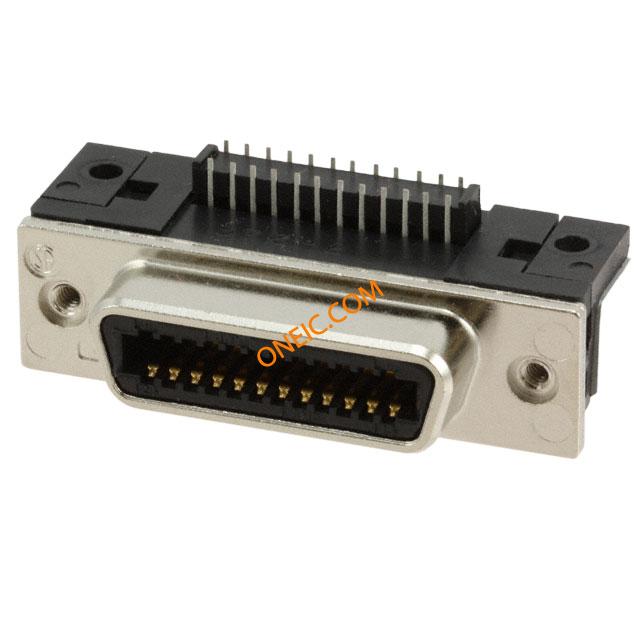

5553811-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 24 POS 2.15mm Solder RA Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A Headers & Wire Housings ASSY EMI RCPT 24 POSN SCR LK 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 24PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY,EMI RCPT,24 POSN,SCR LK |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 55538114 | 标准包装规格 | 60 |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 间距 | 2.15 mm |
| 包装方式 | Tray | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 螺钉尺寸 | 4-40 |
| 方向 | Reverse | 屏蔽类型 | Yes |
| 本体尺寸 | 1.57 mm [ .062 in ] | 端接方式 | Solder |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 端子尺寸 | .126 |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 法兰特征 | Insert, Threaded (4-40) | 安装样式 | Right Angle |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | 铜合金 | 锁定特性 | Screwlocks |
| 磁芯材质 | Thermoplastic | 面板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 屏蔽材料 | Die Cast Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | .157 | 刀片材料 | 热塑塑料 |
| 框架材料 | Thermoplastic | 安装特性 | 安装孔 |
| 包装数量 | 60 | 面板安装类型 | Rear Mount |
| 接地凹痕 | With | 端接样式 | Through Hole |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 产品特性 | Shielded | 方向 | 反向 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | Receptacles / Sockets - PCB | 其他规格 | Yes |
