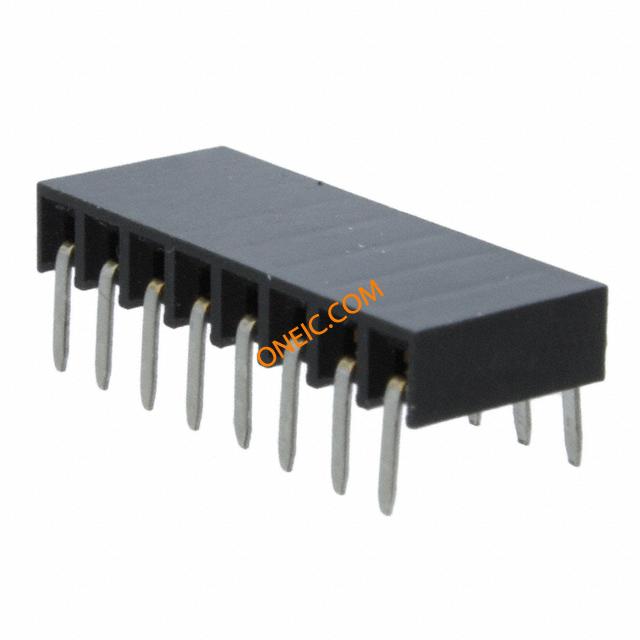

5535676-7

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 RT/ANG AU Headers & Wire Housings 58 MODII HORZ SR CE 100CL Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 08 MODII HORZ SR CE 100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	零件号别名	5-535676-7
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube
工厂包装数量	28

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	额定交流电压	333
连接器阻抗	Closed Entry, Side	最大额定电流	2 A
初始电阻（最小）	12

机械参数

颜色	Black	间距	2.54 mm
高度	3.47 mm [ .1366 in ]	包装方式	Tube
壳体颜色	黑色	轴径尺寸	不带
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole, Right Angle	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	标准
排数	1	插入件材料	磷青铜
操作力	High, Standard	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	28
面板安装类型	通孔 - 焊接	端接样式	Through Hole
触点数	8	位数	8
兼容外壳尺寸（如TM-700等）	公端	触头长度-柱	2.92 mm [ .115 in ]
典型触点布局	同轴	表面贴装焊盘尺寸	Without
端子柱长度	2.92 mm [ .115 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	Yes
产品子类型	Receptacles / Sockets - PCB	装配配置	Board Standoff
加载位置数	All

环境参数

温度范围	是	工作温度	- 55 C to + 125 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]
