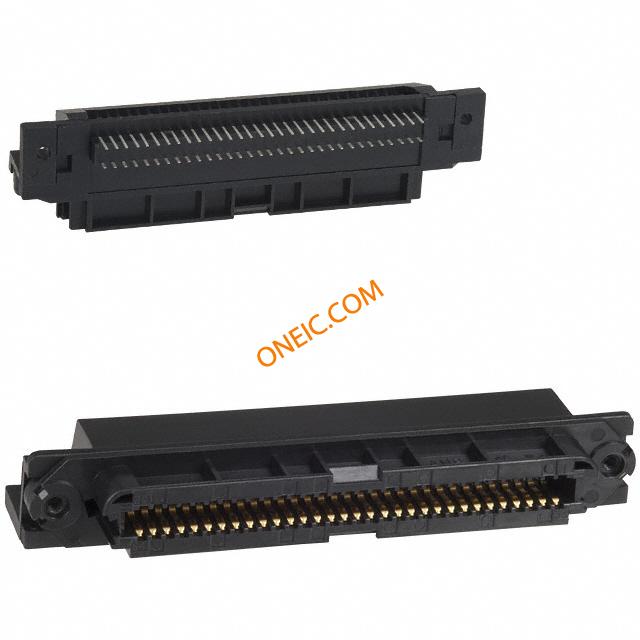

552744-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 F 64 POS 2.16mm Solder RA Thru-Hole 64 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY,RCPT,64 POSN,RTANG,PCB Headers & Wire Housings RECPT 64P STANDARD R.A. mnt selftapping |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Connector Interface |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 2.16 mm |
| 方向 | Standard | 屏蔽类型 | No |
| 端接方式 | Solder | 第二连接器 | With |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 法兰特征 | Tapped, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 锁定特性 | 4-40 Tapped Holes |
| 磁芯材质 | Thermoplastic | 面板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 框架材料 | Thermoplastic |
| 面板安装类型 | Rear Mount | 触点数 | 64 |
| 位数 | 64 | 电缆未暴露长度 | 4.75 [0.187] |
| 接触镀层厚度 | Flash | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | F |
| 制造商全称 | AMP | 其他规格 | No |
| 适用产品/相关产品 | 5552744-1 | ||
