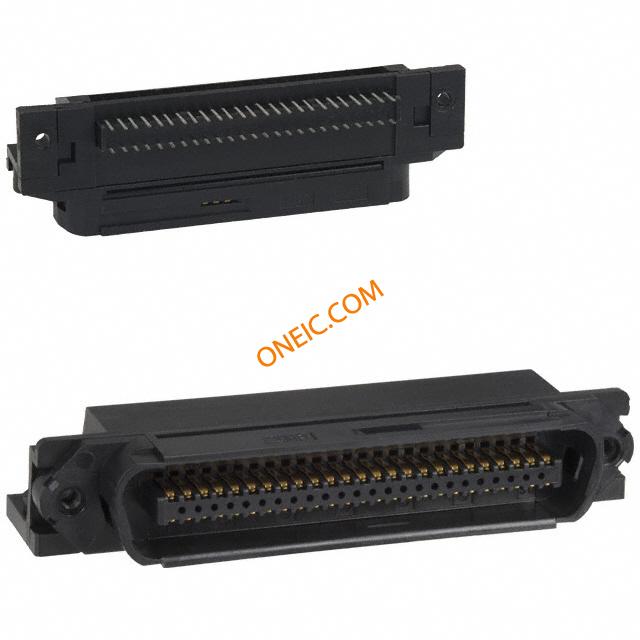

552726-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP 50 POS PLUG RT/ANG Headers & Wire Housings PLUG 50P STANDARD R.A. mnt selftapping Conn IEEE 488 PL 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics |
| 分类 |
商业参数
| 交货时间 | 70 Days | 其他名称 | A1555 |
| 子类别 | Connector Interface | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 深度 | 25.66 mm |
| 间距 | 2.16 mm | 高度 | 16 mm |
| 方向 | Standard | 屏蔽类型 | No |
| 端接方式 | Solder | 第二连接器 | Without |
| 安装类型 | Through Hole | 连接器类型 | Plug |
| 接触镀层 | Tin | 法兰特征 | Tapped, Threaded (4-40) |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 磁芯材质 | Thermoplastic |
| 面板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Standard |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 83.32 mm | 框架材料 | Thermoplastic |
| 面板安装类型 | Rear Mount | 触点数 | 50 |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | For filtered connector, order P/N 93532-2. | 类型 | IEEE 488 |
| 连接器性别 | PL | 制造商全称 | AMP |
| 端口数 | 1 Port | 其他规格 | No |
| 适用产品/相关产品 | 5552726-1 | ||
