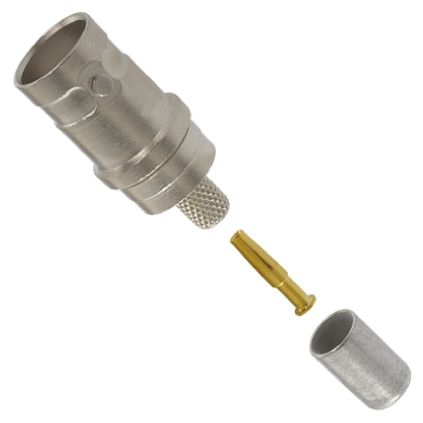

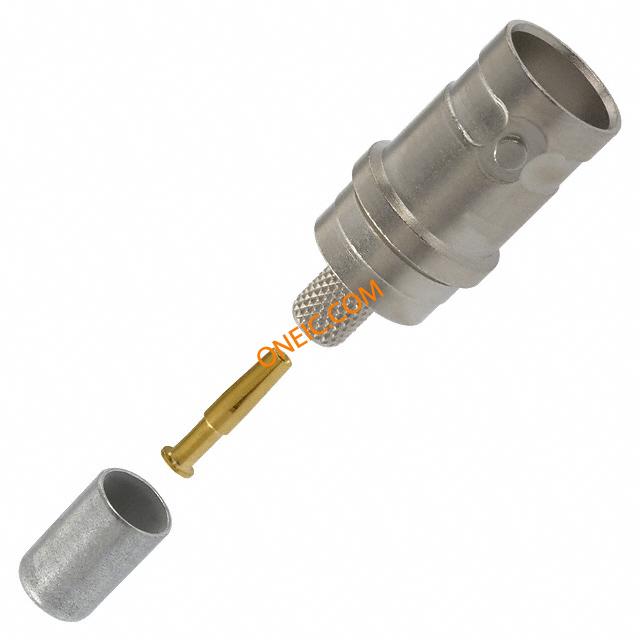

5225396-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Bulk BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC jack,dual crimp, RG 58, 58A,58B, 58C RF Connectors / Coaxial Connectors D.C. CABLE JK 50 OHM Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Bulk Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 50 OHM, CRIMP Jack,Crimp;50Ohms;Straight;Coaxial;BNC;Gold;BerylliumCopper;Teflon TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG58 A/U, RG58 B/U, RG58 C/U, RG58/U电缆, 镀镍本体 BNC JACK DUAL CP RG58,A,B,C |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 尺寸 | Standard | 重量 | 0.005 |
| 包装方式 | Bulk | 电缆类型 | RG-58, RG-58A, RG-58B, RG-58C |
| 本体表面处理 | Nickel | 电缆组 | RG-58, 58A, 58B, 58C |
| 方向 | Straight | 端接方式 | Crimp |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | CableMount | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper | 主要材料 | BNC |
| 端接样式 | Crimp | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Fluoropolymer (FP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | :Straight Jack |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 5225396 |
| 应用细节 | TrueMIL | ||
环境参数
| 工作温度 | - 65 C to + 165 C | ||
