5223961-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS R/A UNIVER Z-PACK TE Connectivity 2, 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 10A Hard Metric Connectors UPM R/A KEYED GUIDE PIN Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE CONN PLUG 3POS UNV,PWR,MDL.HDR,R-PEGS |
| 分类 |
商业参数
| 零件号别名 | 5-223961-1 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 48 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | 2mm HM | 额定电压 | 250V |
| 供电电压 | 250 | 最大额定电流 | 10A |
机械参数
| 颜色 | Gray | 深度 | 22.34 mm |
| 间距 | 2 mm | 高度 | 14.33 mm |
| 密封型 | 不密封 | 包装方式 | Tube |
| 端接方式 | Press Fit | 触头类型 | Compliant Post |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Male Blades | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 连接器样式 | Blade Power |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 总长度 | 12 mm | 面板安装类型 | 通孔 - 免焊连接, 通孔 - 免焊连接 |
| 端接排数 | 3.43 mm [ .135 in ] | 端接样式 | Press Fit |
| 触点数 | 3Power | 位数 | 3 |
| 外壳尺寸-插件 | 插头 | 柱体长度（配合） | 10.90 [0.429] |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 3 Power |
| 接触镀层厚度 | 3µin (0.08µm) | 每排/每行位置数 | All |
产品信息
| 备注 | Contact area lubricated with Bellcore approved lubricant. | 类型 | Backplane |
| 连接器性别 | HDR | 系列 | Z-Pack |
| 已删除 | Compliant | 产品特性 | Board Guide |
| 功能 | Backplane | 编码、键控 | No |
| 主要用途 | Board Guide | 产品子类型 | Plug |
| 输出配置 | Board Edge, Through Hole, Right Angle | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55°C ~ 125°C |
| 封装热阻 | 1.6 mm [ .063 in ] | ||
相关型号

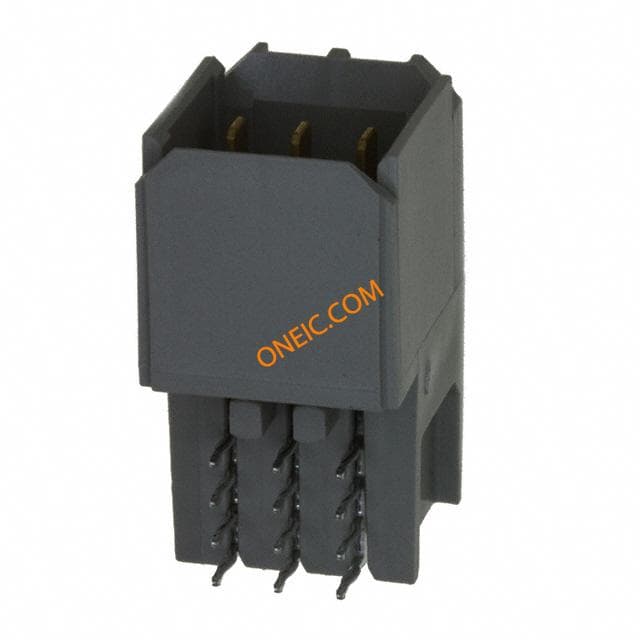

223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) UNV,PWR,MDL.HDR,R-PEGS Hard Metric Connectors UNV PWR MDL. R-PEGS Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE 3 Position 2 mm Plug Right Angle Through Hole Press Fit Universal Power Module TE Connectivity 3mm节距 3路 (1排) 直角 背板连接器, 按压安装端接 , 通孔

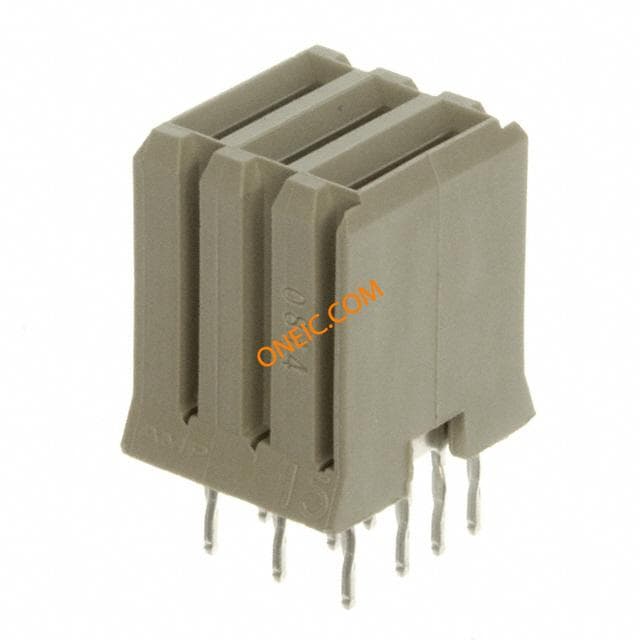

5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS STR UNIVER Z-PACK Female Compact Power Connector Socket Through Hole,Press-In Termination Hard Metric Connectors REC 1X003P VRT B-PLANE UPM high speed backplane connectors Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL 3 Position Vertical Receptacle Through Hole Press Fit Universal Power Module TE Connectivity 背板连接器 插座 母, 通孔安装, 按式端接 UNV PWR MDL ASY RECEPT

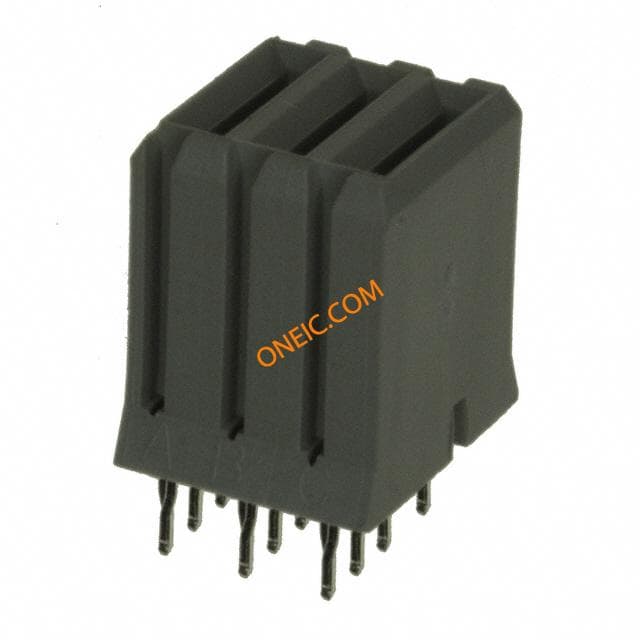

223955-2
