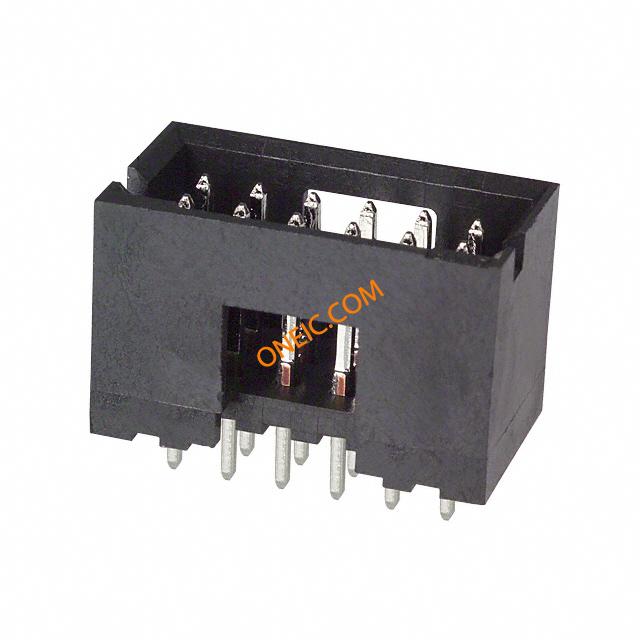

5-87589-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS TIN Headers & Wire Housings 12 MODII HDR DRST SHROUDED .100 Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 12POS, 2.54MM 12 MODII HDR DRST SHRD .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 272 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 750 V | 开关功能 | Detent Windows |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 1 | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | No |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Shrouded | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Detent Lock | 排数 | 2 |
| 封装形式 | 4-Sided | 锁定特性 | Detent Windows |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 1.68 [0.066] |
| 安装特性 | Without | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | :Through Hole Vertical | 位数 | 12 |
| 柱体长度（配合） | 8.08 mm | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触长度 - 配合 | 8.08 [0.318] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 制造商全称 | AMP |
| 产品子类型 | Header | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 工作温度 | -55 â +105 |
