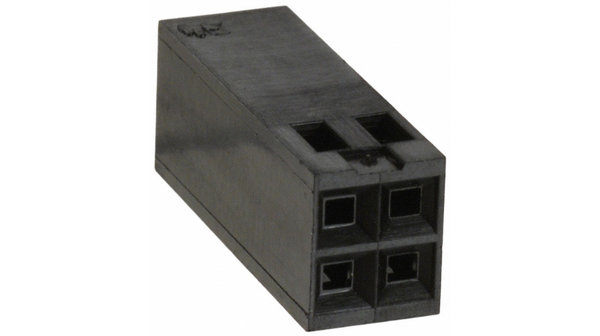

5-87456-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 DUAL ROW Headers & Wire Housings 4P 2 ROW HOUSING Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X2WAY RECEPTACLE,AMPMODU,MODIV,4POSITION,.100IN,DUALROW,MARKED Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 5-87456-0, TE Connectivity 04 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
最大额定电流	:3A	绝缘电阻	5000 MOhms
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	间距	2.54 mm
重量	0.002	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	:Crimp
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	接触镀层	:Gold
排数	2	封装形式	:Black Thermoplastic UL94V-0
触头材料	:Beryllium Copper	壳体材料	Nylon
主要材料	InterconnectSystem	触点数	4
接触件端接	Crimp	位数	4
第一连接器安装类型	:Socket

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf
