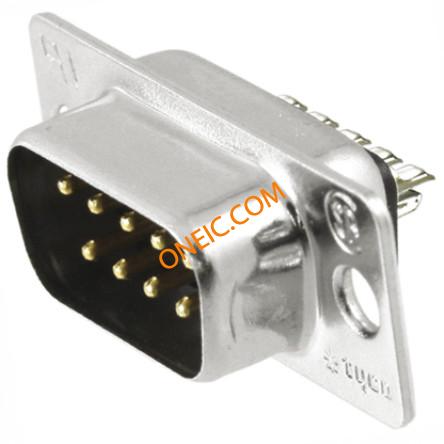

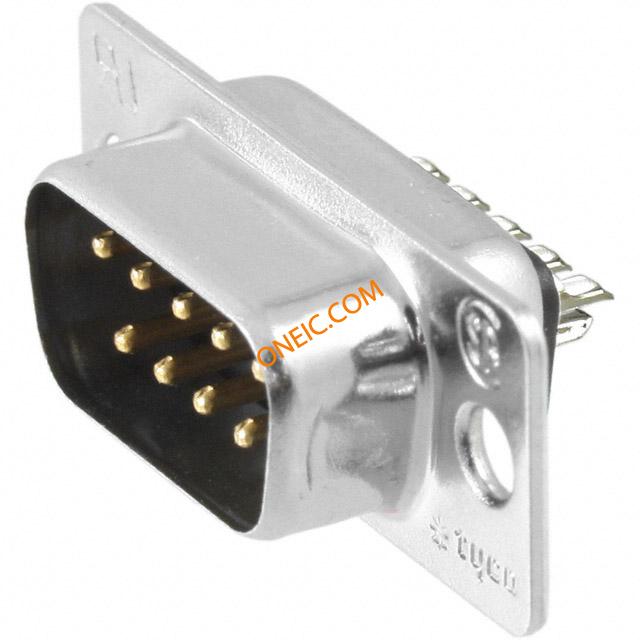

5-747904-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 09 PLUG SOLDER CUP Standard Cable Connectors CONN D-SUB PLUG 9POS SLD CUP AU AMPLIMITE HDP-20 Plug assembly solder 9P Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity AMPLIMITE HDP-20 系列 9 路 直向 通孔安装 PCB D-sub 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series | 额定电压 | 250V |
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 重量 | 0 | 包装方式 | Tray |
| 外壳尺寸 | 1 | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Solder Cup |
| 第二连接器 | With | 安装类型 | Panel Mount |
| 外壳镀层 | Zinc | 连接器类型 | Solder |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Steel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 接地凹痕 | Without |
| 端接样式 | Solder | 触点数 | 9 |
| 接触件端接 | :Solder | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳材料及表面处理 | Steel, Blue Zinc Plated |
| 接触镀层厚度 | 8µin (0.20µm) | 线规或范围 - AWG | 0.5 - 0.6 [20] |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | PIN | 系列 | HD-20 (Solder Cup) |
| 产品特性 | Grounding Indents | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
