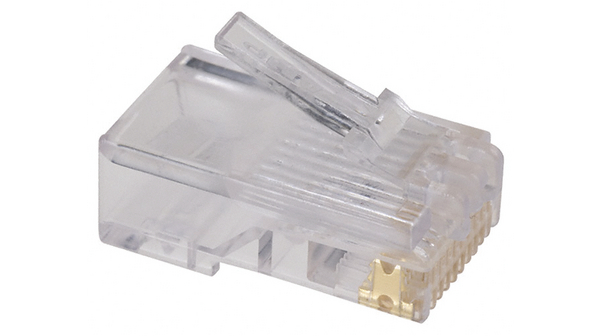

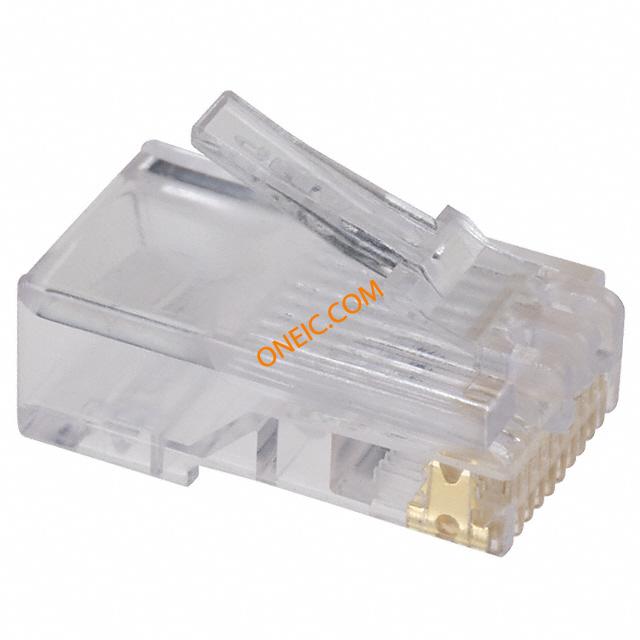

5-557963-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 10 POS 1.02mm ST Cable Mount 10 Terminal 1 Port Box Cat 3 CONN MOD PLUG 10P10C UNSHIELDED Modular Connectors / Ethernet Connectors 10P CLEAR FOR ROUND CABLE Conn Modular Plug PL 10 POS 1.02mm ST Cable Mount 10 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 10Not Shielded10 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, MODULAR CONNECTOR PLUG, MODULAR, 10WAY Modular plug 10, 5-557963-3, TE Connectivity |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 150 V | 最大额定电流 | 1.5 A |
| 连接器类型 - 电压输入 | :Cat3 | ||
机械参数

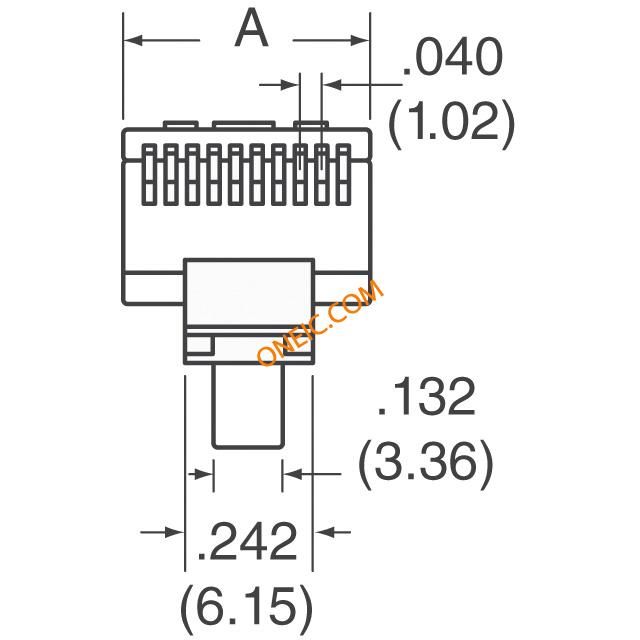

| 颜色 | Translucent - Clear | 间距 | 1.02 mm |
| 长度 | 0.895" (22.74mm) | 重量 | 0.17 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 电缆类型 | Round Cable, Stranded Wires | 导线线规 | 24-28 AWG |
| 端接方式 | IDC | 安装类型 | Cable Mount |
| 连接器类型 | :RJ50 | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 触点数 | :10 | 接触件端接 | :IDC / IDT |
| 位数 | :10 | 接触镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | Modular Plug | 连接器性别 | PL |
| 系列 | :557963 | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 3 |
| 位置/触点数量 | 10p10c (RJ50) | ||
环境参数
| 额定等级 | Cat5 | ||
