点击放大查看

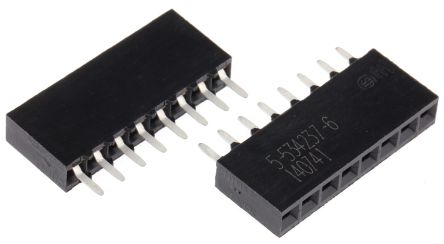

5-534237-6

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 VERT GOLD Headers & Wire Housings REC 1X08P VRT T/H Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 8Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 8WAY, 1ROW TE Connectivity AMPMODU Mod II 系列 8路直 2.54mm节距通孔印刷电路板插座, 板对板 08 MODII VRT SR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	28

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366930

电气参数

额定电压	750 V	接触电阻	12 mohm
最大额定电流	2 A

机械参数

颜色	Black	深度	3.56 mm
间距	2.54 mm	高度	8.13 mm
重量	0	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
外壳颜色	Black	尾部长度	:2.92mm
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	1	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	20.32 mm
端接样式	Through Hole	触点数	8
接触件端接	:Through Hole Vertical	位数	8
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	产品子类型	Receptacles / Sockets - PCB
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-534237-6

在线文档

5-534237-6?RQPN=5-534237-6
