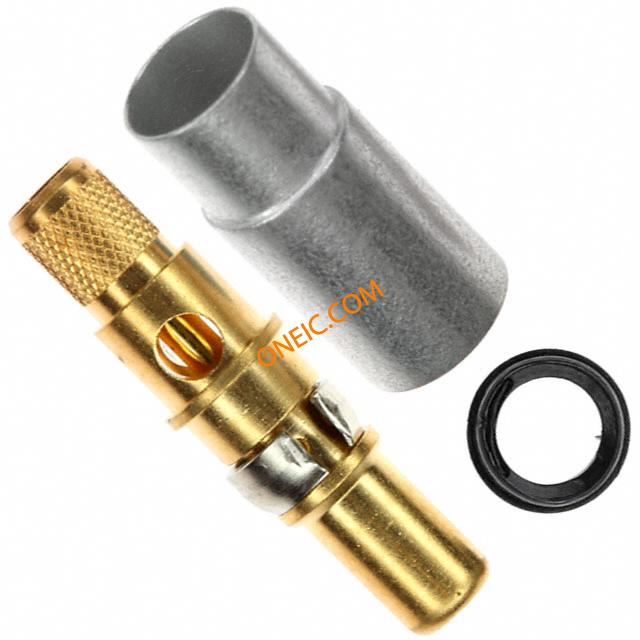

5-228618-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount CONN PIN COAX RG142/BELDEN 9246 RF Connectors / Coaxial Connectors PIN RG142/BELDEN9246 PIN,STRAIGHT,SIZE 8,AMPLIMITE PIN,STRAIGHT,SIZE 8,AMPLIMITE Search Keywords:RF, multi position, |
| 分类 |
商业参数
| 产品 | Contacts | 标准包装规格 | 1 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输入端 | 50 | 连接器阻抗 | 不匹配 |
机械参数
| 包装方式 | Bulk | 电缆类型 | Belden 9246, RG 142, RG 142A, RG 142B, RG 400, RG 58A |
| 导线线规 | Coaxial Cable | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 8 |
| 触头类型 | Coaxial | 外壳表面处理 | 金 |
| 端子尺寸 | 8 | 连接器类型 | Connector RF |
| 接触镀层 | Gold | 插入件材料 | 黄铜 |
| 触头材料 | Beryllium Copper | 壳体材料 | 黄铜 |
| 主要材料 | 直式 | 端接样式 | 插针 |
| 接触件端接 | Crimp | 介电材料 | PTFE |
| 中心触点表面处理 | 金 | 中心触点材料 | 铍铜合金 |
| 接触镀层厚度 | 30µin (0.76µm) | 触点材料 - 配合 | Without |
产品信息
| 备注 | 没有匹配的阻抗，并且 50 欧姆不可互配。 | 类型 | Coaxial |
| 连接器性别 | PIN | 产品子类型 | 接触件 |
