点击放大查看

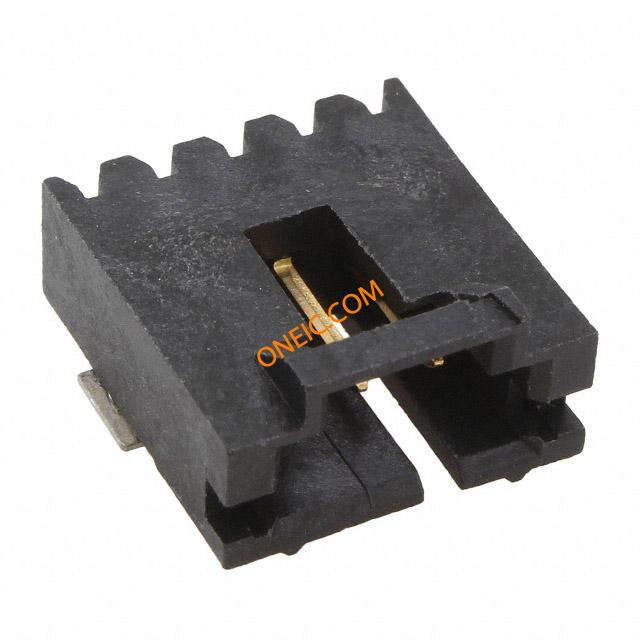

5-147278-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 3POS R/A SMD GOLD Headers & Wire Housings 03 MTE HDR SRRA SFMNT .100CL Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 表面安装 03 MTE HDR SRRA SFMNT .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A100890CT |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.00136 | 包装方式 | Tape & Reel (TR) |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 3 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MTE | 产品特性 | Board Lock, Solder Retention |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
文档与媒体
相关型号
5-103968-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .1010CL
5-103972-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip 8X3 MTE RCPT SR RIBBED .100CL 8X3 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103973-2
te connectivity / amp
8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL
5-103969-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL 8X3 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103971-2
te connectivity / amp
8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL
5-103959-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR LATCH .100CL Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103961-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR LATCH .100CL Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103960-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 GOLD Headers & Wire Housings HSG&REC 1X03C P/L 30-26AWG Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, IDC, 2.54MM, 3WAY 8X3 MTE RCPT SR LATCH .100CL
5-103970-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

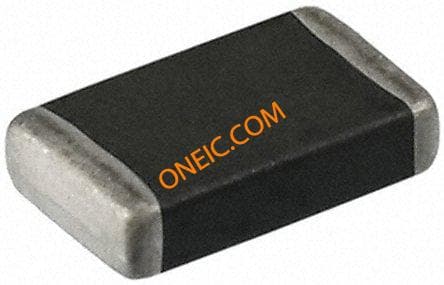

RN73C1J1K02BTG
