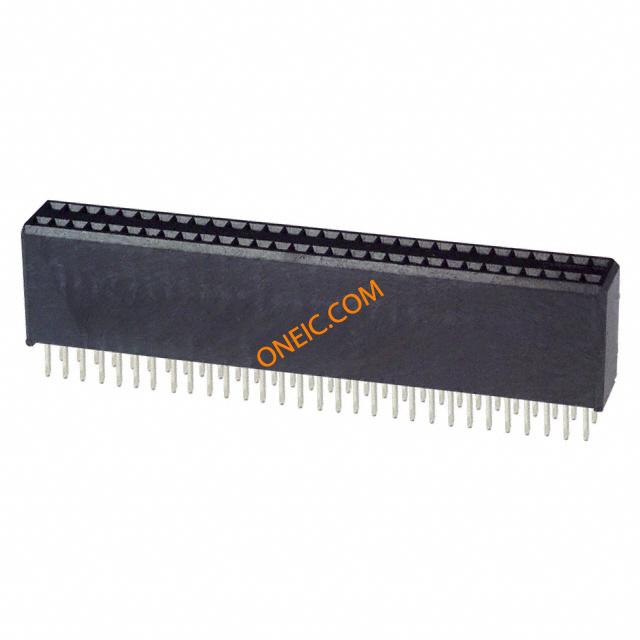

5-104078-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 60POS .050 VERT DUAL Board to Board & Mezzanine Connectors 60 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 60Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 RCPT ASSY DRST SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A33563 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 13 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 V | 供电电压 | 30 |
| 输入电阻 | 5000 | 额定交流电压 | 30 |
| 击穿电压 | 500 | 最大额定电流 | 4 |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 5.02 mm |
| 间距 | 1.27 mm | 高度 | 8.89 mm |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 轴径尺寸 | 不带 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Thru Hole |
| 排数 | 2 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 39.21 mm | 安装特性 | 压具柱体 |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接样式 | Through Hole | 板面高度 | 0.350" (8.89mm) |
| 触点数 | 60 | 位数 | 60 |
| 兼容外壳尺寸（如TM-700等） | 插头组件 | 触头长度-柱 | 2.54 mm [ .1 in ] |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 系列 | AMPMODU SYSTEM 50 | 制造商全称 | AMP |
| 产品子类型 | Receptacle Assembly | 装配配置 | Board Standoff |
| 加载位置数 | All | ||
