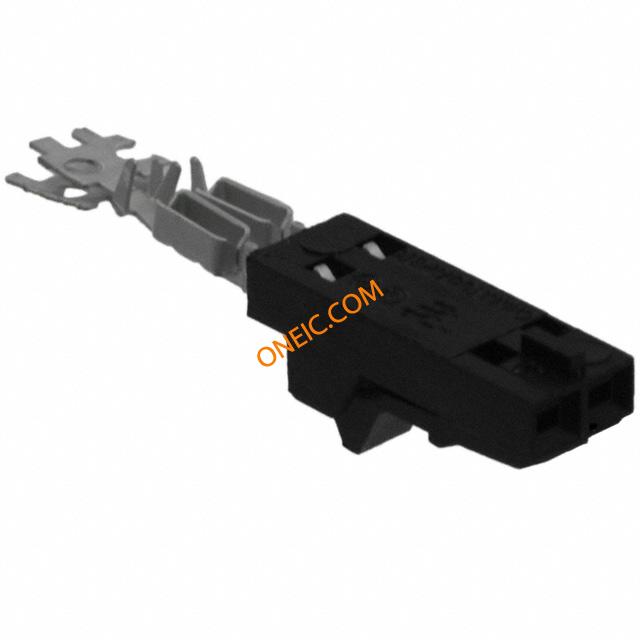

点击放大查看
5-103959-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 2POS .100 26-30 TIN Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10X2 MTE RCPT SR LATCH .100CL |
| 分类 |
商业参数
| 其他名称 | 51039591 | 标准包装数量 | 110 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 600 VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 5.08 mm [ .2 in ] | 长度 | 50.8 mm [ 2 in ] |
| 锁定类型 | Latch | 包装方式 | Tube |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 26-30 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | With |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 磷青铜 | 操作力 | Standard |
| 壳体材料 | 热塑塑料 | 包装数量 | 110 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | 插座 | 触点数 | 2 |
| 绝缘直径 | 1.37 mm [ .054 in ] | 位数 | 2 |
| 兼容外壳尺寸（如TM-700等） | 与接头配合 | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 带有 | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 产品特性 | Closed End |
| 产品子类型 | 连接器 | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
