5-103916-2

点击放大查看

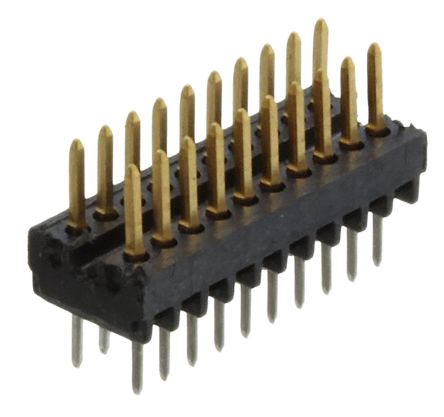

5-103916-2

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 20POS VERT T/H Headers & Wire Housings 050X100 HDR 2X10P VRT T/H U/S Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 20 SYS 50 HDR DRST UNSHRD SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗不带
击穿电压500最大额定电流1A
绝缘电阻5,000保护额定电压（VPR）500 V

机械参数

颜色Black间距0.050" (1.27mm)
底座类型不带包装方式Tube
遮蔽类型No壳体颜色黑色
引脚样式圆形方向垂直
排间距0.100" (2.54mm)稳定剂Without
端接方式Solder第二连接器Without
外壳颜色Black安装类型Vertical
连接器类型Unshrouded接触镀层Tin over Nickel
安装样式Thru Hole排数Dual
高度（英寸）0.225" (5.72mm)插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
包装数量Tube面板安装类型通孔
端接排数焊接端接样式Through Hole
外径.381 mm [ .015 in ]触点数20
端接表面处理Matte Tin-Lead位数20
安装孔直径不带接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
堆叠高度（配合）0.275", 0.450" (6.98mm, 11.43mm)静电放电屏蔽不带
端接镀层厚度150 – 250

产品信息

类型Unshrouded系列AMPMODU System 50
覆盖范围无覆盖钥匙类型否
制造商全称AMP产品子类型Header Assembly
选择性装载No加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65 – 105封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
5-103916-2?RQPN=5-103916-2

相关型号

5-104078-1

5-104078-1

te connectivity / amp
