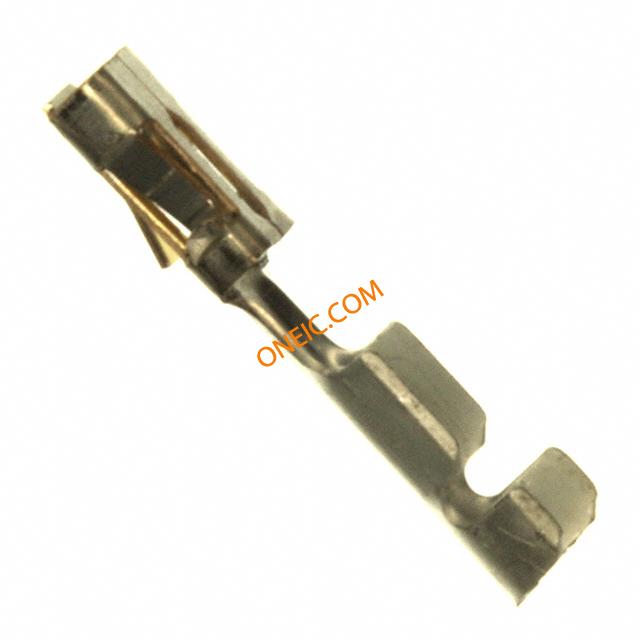

5-103171-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG 30AU CRIMP Headers & Wire Housings INTERMEDIATE 26-22 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP CONTACT,RECEPTACLE,MODIV,26-22AWG AMPMODU Mod IV Series 26-22 AWG Wire to Cable Crimp Insulated Socket Contact MOD IV RECP LP LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 VAC | 最大额定电流 | 3 A |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 触头材料 | Copper-Tin-Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | :26AWG |
产品信息
| 连接器性别 | SKT | 系列 | AMPMODU MOD IV |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Mod IV.v Series Connectors |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号
87667-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG GOLD CRIMP AMPMODU IV Socket Contact Gold 26-22 AWG Headers & Wire Housings STANDARD PRESSURE 26-22 AWG gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP Contact;ModIV;26-22AWG;Crimp;250;3A;750V;-65degC;105degC Crimp socket 3 A Female 26...22 AWG, 87667-2, TE Connectivity MOD IV RECP LP
91517-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers CERTICRIMP 2 SAHT MOD IV CRIMP TOOL MT CONN 22-26AWG Crimper,SAHTRatchet,26-22AWG,MOD IV CRIMP TOOL, SAHT, 22-26AWG Crimper;SAHTRatchet;26-22AWG;MODIVReceptacles;CERTI-CRIMPII AMPMODU Contact Family CERTI-CRIMP II Application Tool CERTICRIMP 2,SAHT MOD 4
87666-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-22AWG CRIMP GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP CONTACT,RECEPTACLE,MODIV,26-22AWG,15AU,CRIMPSNAP-IN MOD IV RECP PLTD 15 SEL

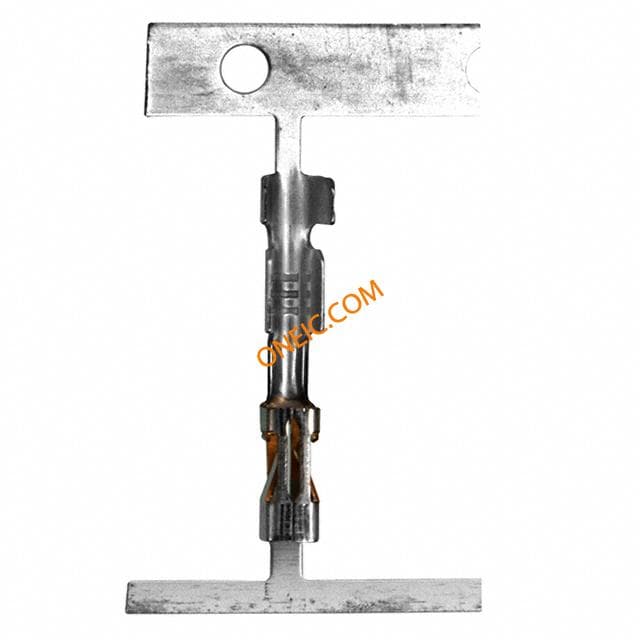

5-103171-4
