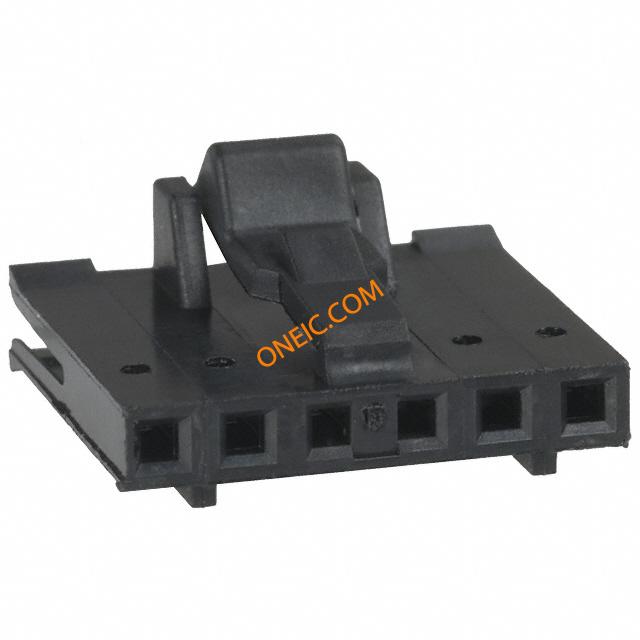

点击放大查看
487526-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount FFC & FPC Connectors 006 HOUSING FFC RCPT Flexible Film Connectors CONN RCPT 6POS.100 SLIM W/LATCH Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,6POS,2.54MM,SLIMLINE,SINGLER 006 HOUSING FFC RCPT 100CL SR |
| 分类 |
商业参数
| 其他名称 | 4875265 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
电气参数
| 额定电压 | 300 V | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 钳位电压 | 720 |
| 连接器阻抗 | 锁闩, 锁闩 | 最大额定电流 | 2 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.72 mm |
| 间距 | 2.54 mm | 锁定类型 | 带有 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 电缆类型 | FFC | 第二连接器 | With |
| 安装类型 | Straight | 连接器类型 | Slimline |
| 安装样式 | Cable | 排数 | 1 |
| 连接器用途 | Receptacle | 锁定特性 | Latch |
| 壳体材料 | Thermoplastic | 总长度 | 2.54 [0.100] |
| 安装特性 | Without | 包装数量 | 1000 |
| 面板安装类型 | Without | 主要材料 | FFC |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.13mm |
| 配接方向 | Without | 触点数 | 6 |
| 位数 | 6 | 安装孔直径 | 带有 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Latch Lock | 制造商全称 | AMP/Slimline |
| 产品子类型 | Free Hanging | 连接类型 | FFC Cable |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
