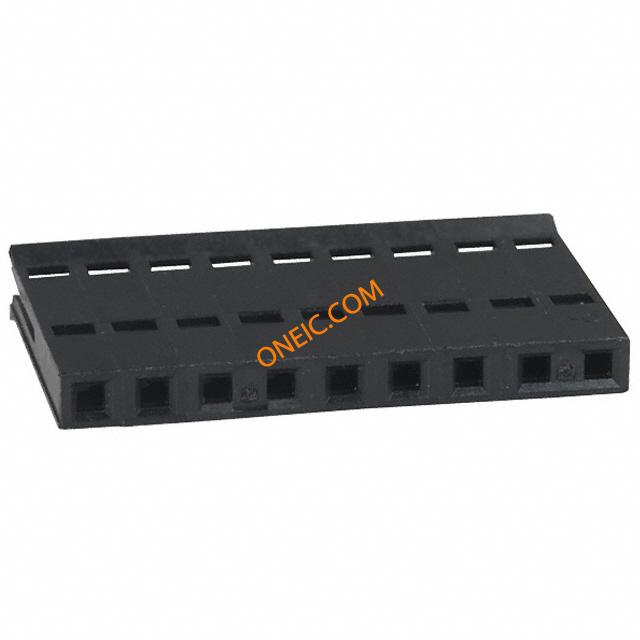

487378-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 9POS .100 SLIMLINE FFC & FPC Connectors REC 1X09P 100X100 HSG Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 9Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 009 HOUSING FFC RCPT 100CL SR
分类	连接器解决方案FFC/FPC连接器FFC/FPC连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	4873788	产品类别	FFC & FPC Connectors
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	Yes

电气参数

额定电压	300V	供电电压	300 VACrms
输入电阻	5000	钳位电压	720
最大额定电流	2A

机械参数

颜色	Black	间距	2.54 mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	电缆类型	FFC
第二连接器	Without	安装类型	Straight
连接器类型	Slimline	安装样式	Cable
排数	1	连接器用途	Receptacle
壳体材料	Thermoplastic	总长度	2.54 [0.100]
安装特性	Without	包装数量	1
面板安装类型	Without	端接样式	插座
FFC/FCB厚度	0.05-0.13mm	配接方向	Without
触点数	9	位数	9
安装孔直径	不带

产品信息

类型	Housing	连接器性别	RCP
产品子类型	Housing	连接类型	FFC Cable

环境参数

工作温度

-65°C ~ 105°C
