点击放大查看

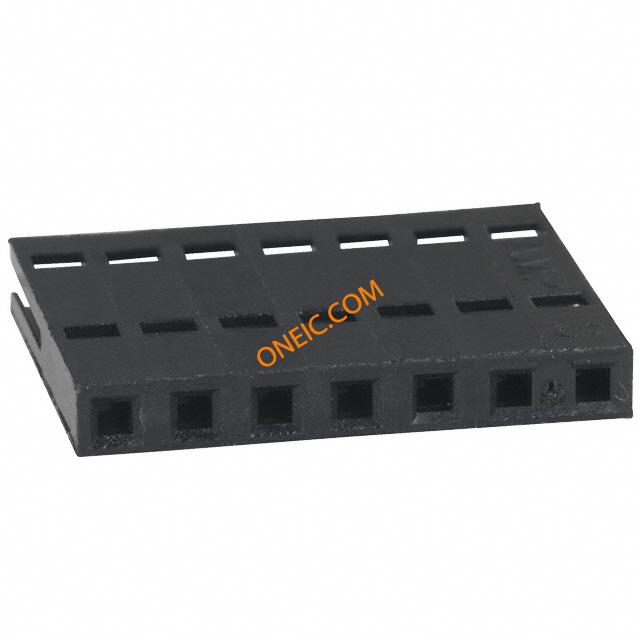

487378-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 7POS .100 SLIMLINE FFC & FPC Connectors 007 HOUSING FFC RCPT Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 007 HOUSING FFC RCPT 100CL SR
分类	开关

对参数有疑问？问 AI 助手

商业参数

其他名称	4873786	产品类别	FFC & FPC Connectors
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	Yes

电气参数

额定电压	300V	供电电压	300 VACrms
输入电阻	5000	钳位电压	720
最大额定电流	2A	最小供电电压	300VAC

机械参数

颜色	Black	深度	13.72 mm
间距	2.54 mm	高度	3.66 mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	电缆类型	FFC
第二连接器	Without	外壳颜色	Black
安装类型	Straight	连接器类型	Slimline
安装样式	Cable	排数	1
连接器用途	Receptacle	壳体材料	Thermoplastic
总长度	2.54 [0.100]	安装特性	Without
包装数量	1	面板安装类型	Without
端接样式	插座	FFC/FCB厚度	0.05-0.13mm
配接方向	Without	触点数	7
位数	7	安装孔直径	不带

产品信息

类型	Housing	连接器性别	RCP
系列	AMP	产品子类型	Housing
连接类型	FFC Cable

环境参数

工作温度

-65°C ~ 105°C
