点击放大查看

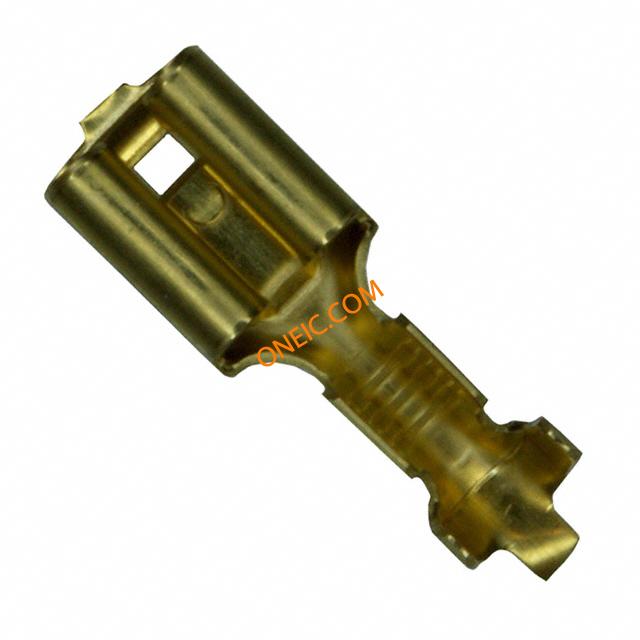

42617-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 14.85mm 5.85mm Strip Terminals .187 FAST REC 20-16 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 16-20 AWG .187 Quick Disconnect Terminal 16-20AWG RCP 14.85mm 5.85mm Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL FEMALE DISCONNECT 0.187IN CRIMP FASTON 187 RECEPTACLE 20-16 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 20,000 | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 5.85 mm |
| 表面处理 | None | 重量 | 0.01 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 厚度 | 0.30 [0.012] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 20-16 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.187 in x 0.02 in |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 连接器类型 | :Female Disconnect | 连接器样式 | Straight |
| 箔压接区域 | Tab-Lok | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Budget | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 线规或范围 - AWG | :20AWG |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 第二连接器安装特性 | No |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
