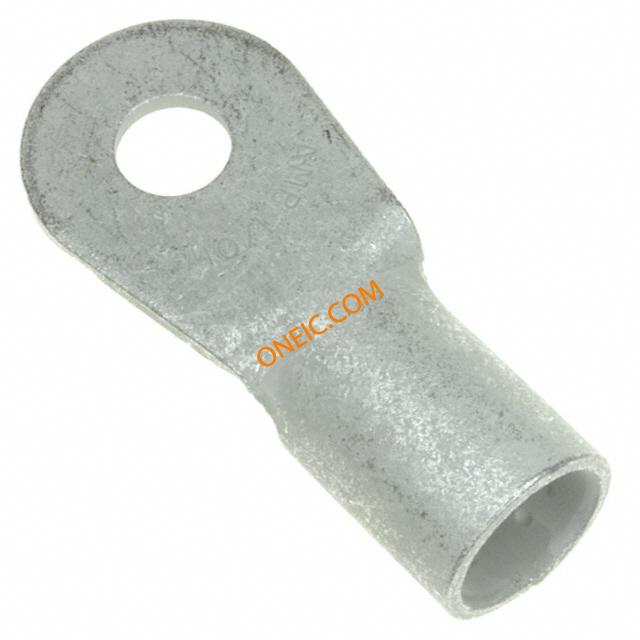

36916
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal (1/0)AWG 49.68mm 22.23mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 1/0 AWG #5/16 SOLIS Ring terminal, SOLISTRAND, M8, 1/0 AWG Ring Tongue Terminal (1/0)AWG 49.68mm 22.23mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TERMINAL, 1-0AWG TERMINAL,RINGROUNGE,SOLISTRAND,5/16,1/0AWG,STRAIGHT,CLOSEDBARREL TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 螺栓, 8.33mm内环直径, 49.68mm总长 TERMINAL,SOLIS R 1/0 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 22.23 mm |
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 0.001 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.78 [0.070] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | (1/0) AWG |
| 本体表面处理 | SOLISTRAND | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 8 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 线束直径 | 11.28 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :(Not Available) | 总长度 | 1.956" (49.68mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外缘宽度 | 0.875" (22.23mm) | 绝缘材料 - 材质 | :Uninsulated |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 83,700 â 119,500 |
| 线规或范围 - mm² | 41.00-60.00; [1-1/0] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 369 | 产品特性 | Brazed Seam |
| 制造商全称 | AMP | ||
相关型号
601075
te connectivity / amp
BANTAM ROTA-CRIMP TOOL Crimpers BANTAM ROTA-CRIMP TOOL TOOL HAND CRIMP ROTA-CRIMP Rota crimp tool-AMP solistrand terminal Bantam Rota-Crimp Tool Rota-Crimp Hand Tools HAND TOOL, BANTAM ROTARY CRIMP Rotacrimptool-AMPsolistrandterminal CRIMPTOOL TE Connectivity Bantam ROTA-CRIMP 系列 SOLISTRAND Crimp Terminals and Splices 压接工具 , 适用于6.7 → 60.5 mm² 线规格
48183
te connectivity / amp
PNEU HD, SOLIS 69015 1/0 Hand Tools PNEU HD SOLIS 69015 1/0 PNEU HEAD 1/0AWG STRATO-THERM Pneumatic Head For 69015
600372
te connectivity / amp
HEAD, BOX CRIMP Crimpers HEAD BOX CRIMP TOOL HEAD CRIMP SOLIS 1/0AWG
600850
te connectivity / amp
Receptacle Assembly, AMP SC To Bayonet Crimp Tool Crimpers ROTO-CRIMP TOOL ROTA CRIMP HAND CRIMPING TOOL Crimper;Ratchet;8-4/0AWG;SOLISTRANDSplices/Terminals;ROTA-CRIMP ROTO-CRIMP TOOL (ASI)

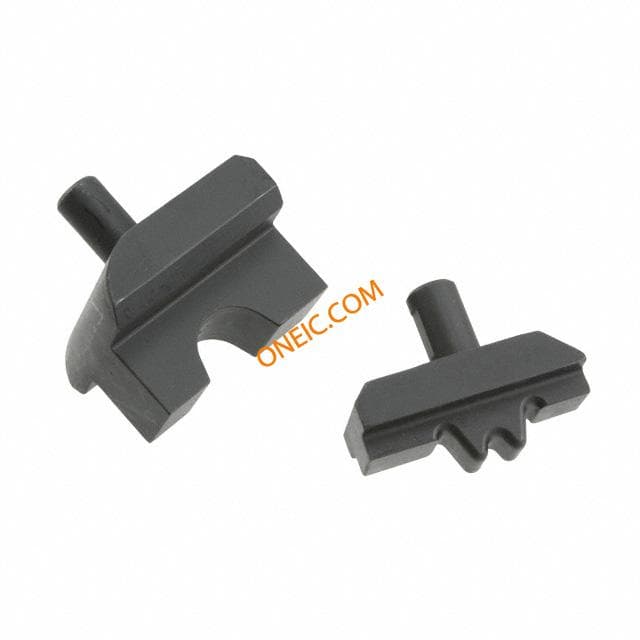

45436
