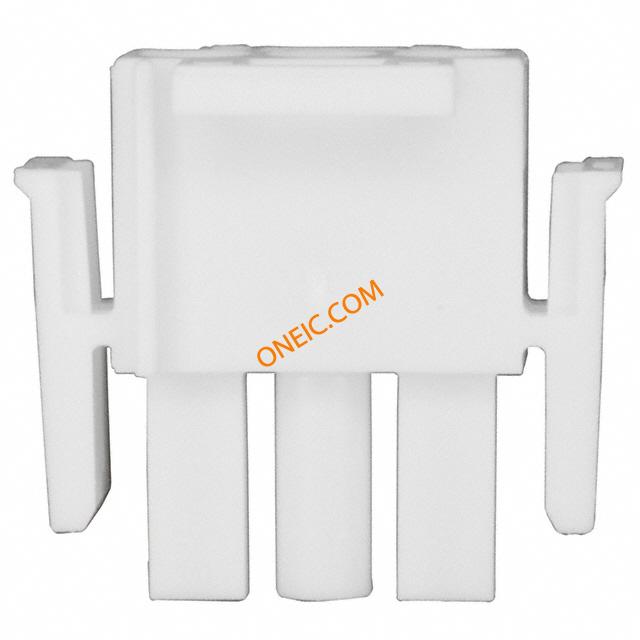

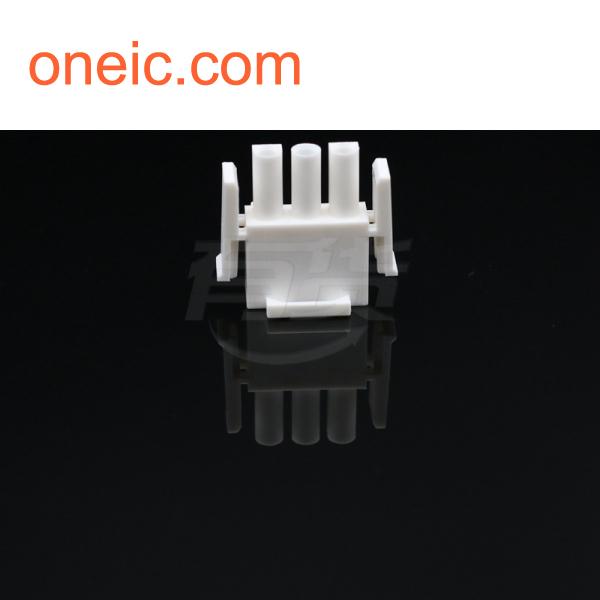

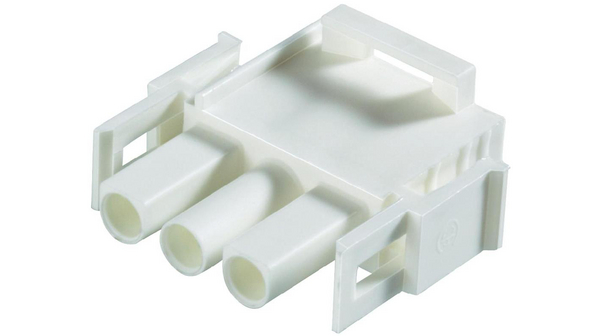

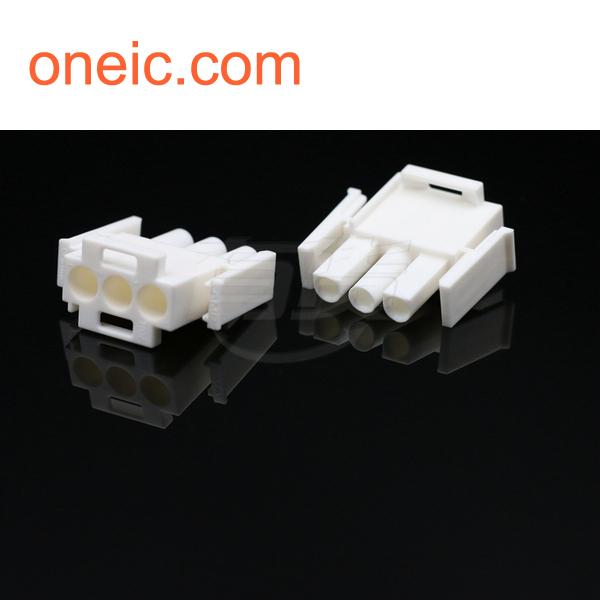

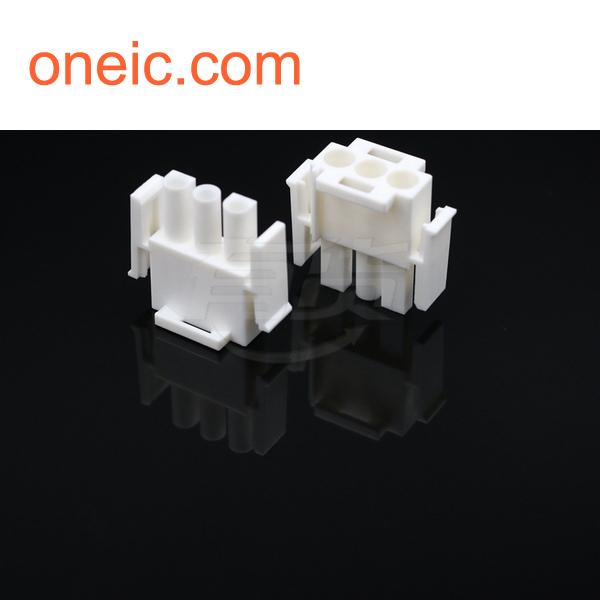

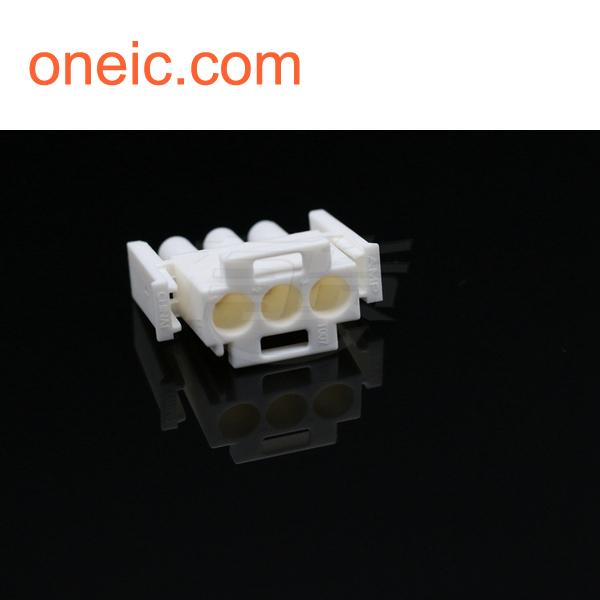

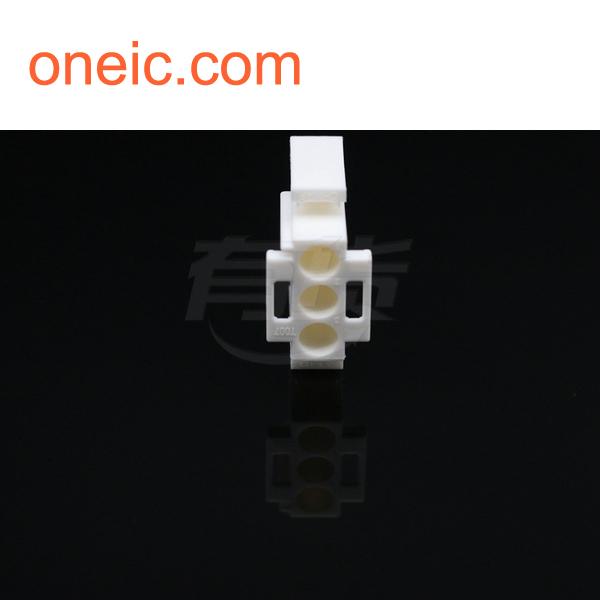

350766-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 6.35mm ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-0 UNI-MATE 3 way white plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350766-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | White | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 14.73mm |
| 高度 | 14.73 mm | 重量 | 0.002 |
| 材料（通用） | :Nylon | 包装方式 | Individual |
| 导线线规 | 10-30 AWG | 重量（g） | 8.75 |
| 触头类型 | Male or Female | 柱间距 | 6.35mm |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 锁定特性 | lock | 材料表面处理 | :- |
| 壳体材料 | Nylon | 包装数量 | 2 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Opaque |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 第一连接器安装特征 | 1x3 |
产品信息
| SPG | 2 | 名称 | 塑壳 |
| 备注 | Contacts Not Provided | 类型 | Housing |
| 单位 | PCS | 连接器性别 | PL |
| 系列 | MATE-N-LOK | 数量 | 2800.0 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 制造国家 | 中国 | 设备部件号 | 350766-1.pdf |
| 最小起订量 | 1 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 105C |
文档与媒体
相关型号
