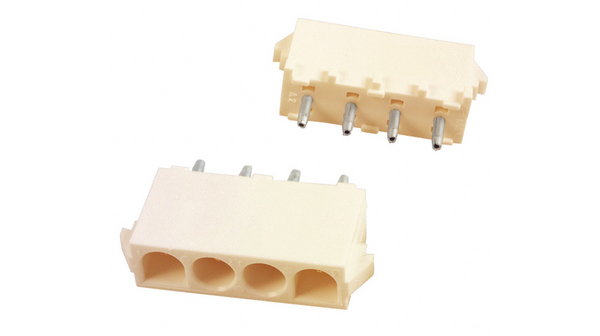

350761-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN Pin & Socket Connectors 4 POS STD TAIL SOC Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 4POS, 6.35MM Header;SoftShell;UniversalMATE-N-LOK;Natural;Nylon;4;UL94V-2 Socket header Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350761-4, TE Connectivity 04P UMNL HDR ASSY PC |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.003 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 26.67 mm | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Universal Mate-N-Lok | 产品子类型 | Receptacle Housings |
| 端口数 | 1 Port | 加载位置数 | All |
