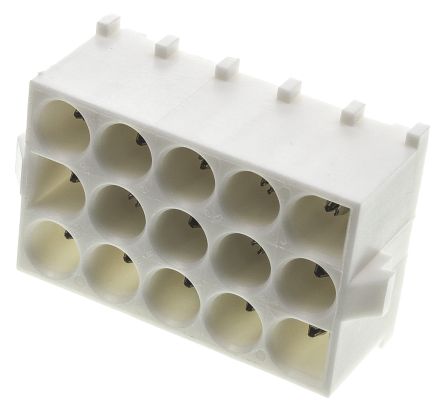

350714-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN MATE-N-LOK 15 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 15 P PCB VERT HEADER Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 15WAY UNIVM-N-LHEADER,15PUMNLPINHDRASSY94VO Socket; wire-board; male; 6.35mm; PIN:15; tinned; Pin layout:3x5 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 15路 直 PCB 针座, 焊接端接, 19A , 通孔 15P UMNL PIN HDR ASSY 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V/m | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 20.32 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.008 | 材料（通用） | :Clear nylon |
| 包装方式 | Bulk | 方向 | straight |
| 排间距 | 0.250" (6.35mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :6.35mm |
| 柱间距 | 6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 50 |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | socket |
| 第一触头极性 | Pin (Male) | 触点数 | 15 |
| 接触件端接 | :Through Hole Vertical | 位数 | 15 |
| 安装孔直径 | :1.8mm | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 3x5 | ||
产品信息
| SPG | 50 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 适配器系列 | Universal MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
1-480710-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L BROWN Power to the Board PLUG 15P BROWN Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL PLUG HSG BRN
1-480710-8
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L GRAY
1-480710-3
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L ORNG
350736-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS 94V-0 UNI-MATE 15 way white plug housing Pin & Socket Connectors PLUG HOUSE 15 POS Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 350736-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNL PLUG HSG
1-350849-5
te connectivity / amp
Conn Power RCP 15 POS 6.35mm ST Cable Mount 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN TEST CAP 15POS UNIV M-N-L
770023-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,15Way Pin & Socket Connectors 15 MATRIX PLUG Conn Housing PL 15 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;15;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 770023-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNLII IN-LNE PLUG HSG KIT
1-480710-9
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 15POS 94V-2 BLK Pin & Socket Connectors 15P PLG HSG BLK Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Universal MATE-N-LOK 15 Position Free Hanging Pin or Socket Housing Connector 15P UMNL PLUG HSG BLK
1-480710-0
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS 94V-2 UNI-MATE Housing,plug,free hanging,15way Pin & Socket Connectors PLUG HOUSE 15 POS Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Plug;Nylon;Black;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 1-480710-0, TE Connectivity 15P UMNL PLUG HSG NATL
350783-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 12POS 94V-0 UNI-MATE 12 way white receptacle housing Pin & Socket Connectors CAP HOUSE 12 POS Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP RECEPTACLE HOUSING, 12WAY Connector,SoftShell;UniversalMATE-N-LOK;12;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 12 Multi row / for panel mount MATE-N-LOK Universal, 350783-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 4 行 6.35mm 节距 12 路 直 母 压接连接器外壳 12P UMNL CAP HSG
350736-4
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING MATE-N-LOK 15CRCT Universal mate-n-lok 15w Plug Connector Power to the Board 15P PLUG UL94V0 Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING 15WAY Universalmate-n-lok15wPlugConnector Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing 6.35 mm Poles 15 MATE-N-LOK Universal, 350736-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 15 路 直 公 电缆安装 压接连接器外壳 15P UMNL PLUG HSG UL94V0
2-480710-0
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L NATL Pin & Socket Connectors 15P UMNL PLUG HSG NATL .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL PLUG HSG NATL
1-480710-2
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 15POS 94V-2 RED Pin & Socket Connectors 15P PLUG HSG RD Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingHousing Gender = PlugNot PreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL PLUG HSG RED
1-480710-4
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L YELLW
1-480710-5
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L GREEN
1-480710-6
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L BLUE

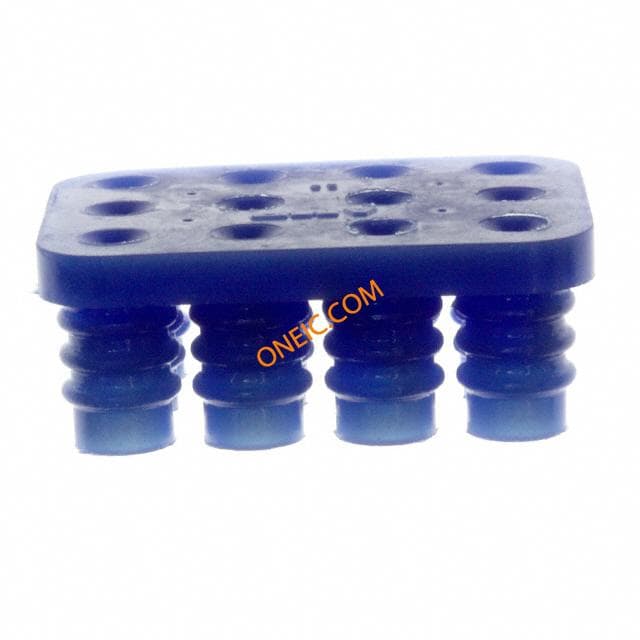

794280-1
