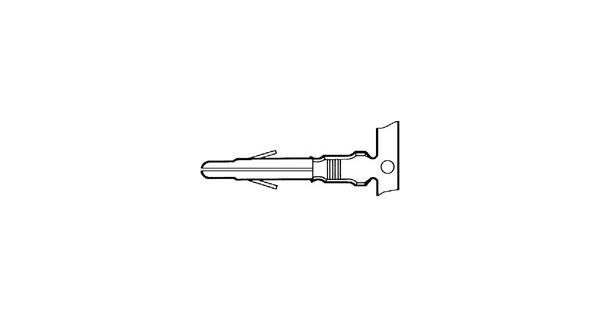

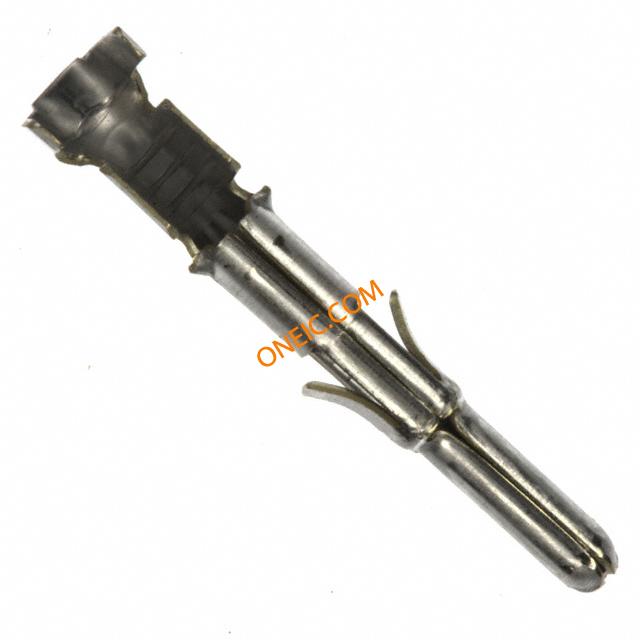

350669-1

点击放大查看

350669-1

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece Universal MATE-N-LOK Connectors CONN PIN GROUND 14-20AWG CRIMP Contact,crimp,pin,grnd,Matenlok,20-14awg Pin & Socket Connectors 20-14 CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Grounding PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT SOCKET, EARTH, PRELEADING PRE-TINNEDBRASS,UNIVERSALGROUNDINGPIN;20-14AWG Ground pin Male 24...20 AWG, 350669-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL GRND PIN 20-14 PTPBR L/P
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant / ELV compliant

电气参数

电压600.0额定电压250 V
最大额定电流19最小供电电压600VAC
输出高/低电流No

机械参数

深度4.32 mm间距Not Required mm
重量0.01材料（通用）:Brass, pre-tinned
包装方式Bulk厚度0.3
导线线规14-20 AWG端接方式Crimp
触点形式Ground触点尺寸:14
触头类型Power芯径2.13
安装类型Straight插针或插孔Pin
连接器类型Connector Power接触镀层Pre-Tin
安装样式Cable触头材料Brass
壳体材料Not Required总长度22.86 mm
包装数量Loose Piece主要材料Brass
端接样式Crimp第一触头极性Pin (Male)
触点数1 POS接触件端接Crimp
绝缘直径1.52-3.30 [.060-.130]线规或范围 - AWG0.50-2.00² [20-14]
线规或范围 - mm²:2.1mm²外径-未扩张:3.3mm

产品信息

备注Mate first, break last, not for interrupting current. / Contacts can be used wit类型Contact
连接器性别PIN系列Universal MATE-N-LOK
可密封YesCAD图纸3D CAD Model
制造商全称AMP产品子类型Contact
端口数1 Port其他规格Wire/Cable
适用产品/相关产品:Universal MATE-N-LOK Connectors

文档与媒体

PDF 文档
1650929.pdf
在线文档
350669-1?RQPN=350669-1
