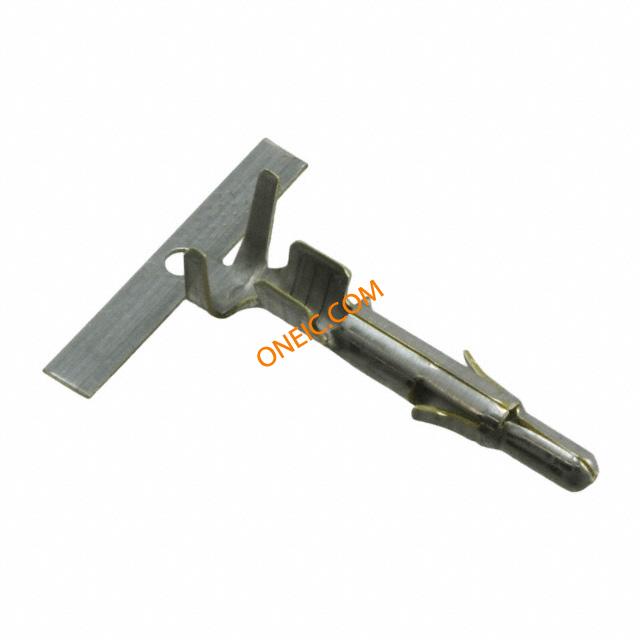

350538-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG UNI MATE-N-LOK Contact,crimp,pin,Mate-n-lok,20-14 awg Power to the Board PIN 20-14 AWG Reel of 2500 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CONTACT, CRIMP, PIN, 20-14AWG, REEL CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG,.0126 TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 20-14 .0126 PTPBR |
| 分类 |
商业参数
| 其他名称 | A100566CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 5.97 mm | 间距 | Not Required mm |
| 重量 | 0.034 | 材料（通用） | :Brass |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触点尺寸 | :14 |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 包装数量 | :1 | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Tin |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 绝缘直径 | :5.1mm | 线规或范围 - AWG | 20-14 |
| 线规或范围 - mm² | :2mm² | 外径-未扩张 | :5.08mm |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | :Universal Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 端口数 | 1 Port |
| 适用产品/相关产品 | :Universal MATE-N-LOK Connectors | ||
环境参数
| 工作温度 | 125°C | 结工作温度 | 125C |
文档与媒体
