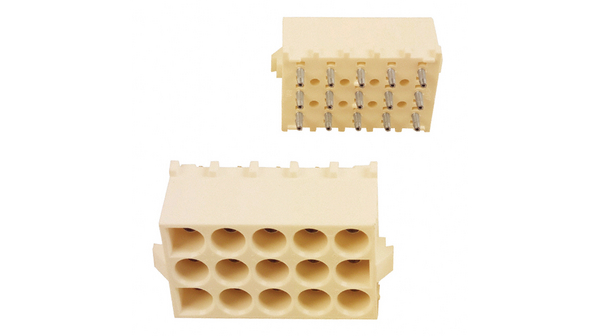

350434-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 15POS VERT .250 TIN MATE-N-LOK 15 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 15P PIN HEADER Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Nylon;Natural;19A;600VAC Pin header Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 350434-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 15路 直 PCB 针座, 焊接端接, 19A , 通孔 15P UMNL PIN HDR ASSY NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V ac |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V | 最大额定电流 | 19A |
| 绝缘电阻 | :1000Mohm | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 20.32 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.008 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Pre-Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 15 |
| 接触件端接 | :Through Hole Vertical | 位数 | 15 |
| 安装孔直径 | :1.8mm | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 端口数 | 1 |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
