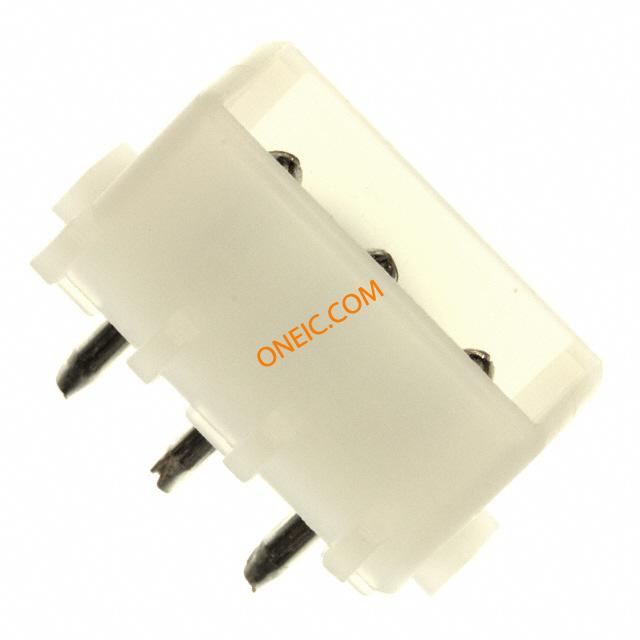

350423-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Mate N Lock RCP 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 3POS VERT .200 TIN Pin & Socket Connectors 3P PCB HEADER 350423-1 Conn Mate N Lock RCP 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Bag Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL HDR ASSY PC NATL |
| 分类 |
商业参数
| 其他名称 | A14370 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 宽度 | 9.525 mm [ .375 in ] | 高度 | 8.382 mm [ .33 in ] |
| 长度 | 18.161 mm [ .715 in ] | 密封型 | 不密封 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 端接排数 | 3.05 mm [ .12 in ] |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 位数 | 3 |
| 外壳尺寸-插件 | 母端, 母端 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 预镀锡 |
| 典型触点布局 | 直插式 | 接触镀层厚度 | 2.54 µm [ 100 µin ] |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Mate N Lock | 连接器性别 | RCP |
| 系列 | Circuit Mate N Lok | 产品子类型 | Headers |
| 应用细节 | Power | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
文档与媒体
