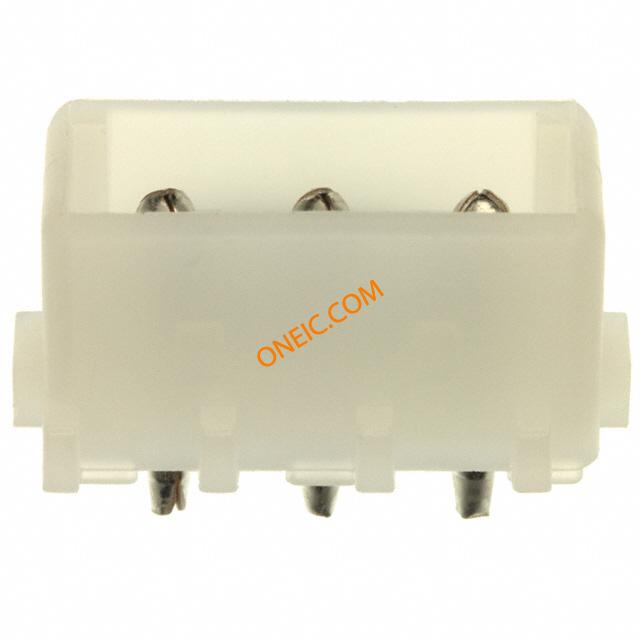

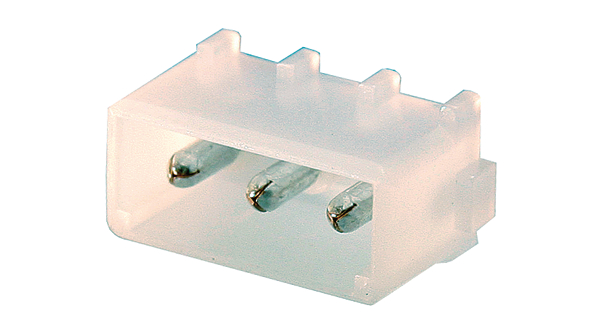

350210-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port 03P CENTERLINE BOARD HEADER .200" Centerline, 250 V, 13 A max. CONN HEADER 3 POS TIN PCB MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 3 POS TIN Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, 3WAY Connector,Shell;CommercialMATE-N-LOK;Pin;3;13;250VAC;Nylon;Natural Pin header, straight Pitch5.08 mm Poles 1 x 3 MATE-N-LOK Commercial, 350210-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 3路 直 PCB 针座, 焊接端接, 13A , 通孔 03P CMNL HDR ASSY PC NATL |
| 分类 |
商业参数
| 最小起订量 | 100 | 单位包装 | 100 |
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :TE - Commercial MATE-N-LOK Series | 额定电压 | 250 V ac/dc |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 0.30µMGOLDA |
| 绝缘电阻 | :500Mohm | 最小输入电压 | 250VDC|250VAC |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 8.38 mm |
| 间距 | 5.08 mm | 高度 | 10.29 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 出线方向 | 5.08 |
| 导线线规 | THT | 屏蔽类型 | 250 |
| 端接方式 | Solder | 触头类型 | MALE |
| 引脚间距 | :5.08mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Pre-Tin |
| 安装样式 | Through Hole | 排数 | 01 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 18.17 mm | 端接样式 | N |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 3 | 接触件端接 | :Solder |
| 位数 | 3 | 安装孔直径 | :1.8mm |
| 接触长度 - 配合 | 0.180" (4.59mm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | STRAIGHT | 匹配码 | 3502101 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 端口数 | 1 | 标准交期 | 99 weeks |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | 13 | 工作温度 | NYLON°C |
| 结工作温度 | 105C | ||
