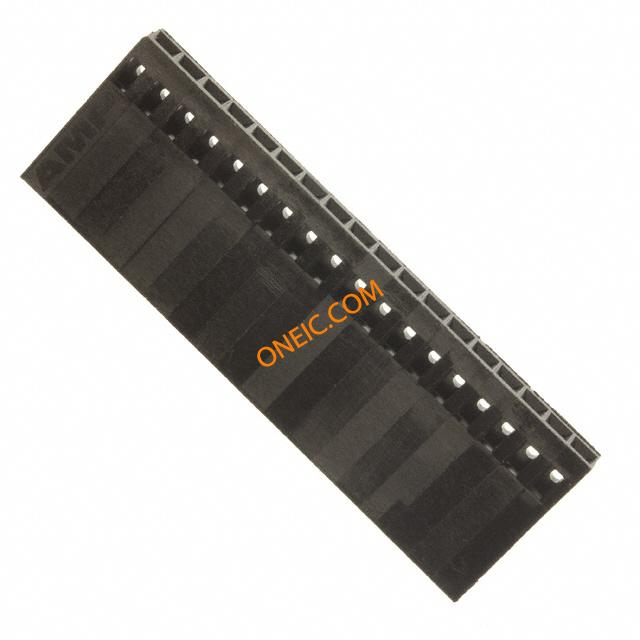

点击放大查看
3-87499-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 SINGLE Headers & Wire Housings 18 MODIV HSG COMP SR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 18POS, 2.54MM 18 MODIV HSG COMP SR .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 VAC | 开关功能 | Unlatched |
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 3.56 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 安装样式 | Free Hanging | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 45.85 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品子类型 | Receptacles / Sockets - Housings | 有铅工艺兼容 | :Yes |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
