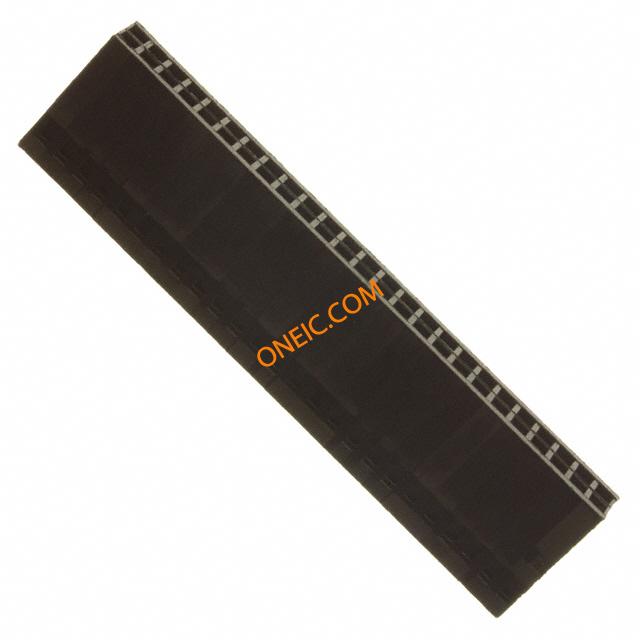

3-87456-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL ROW Headers & Wire Housings 50 MODIV HSG COMP DR Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
绝缘电阻	5000 MOhms	连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	间距	0.100" (2.54mm)
重量	0	包装方式	Bulk
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:(Not Available)	排数	2
壳体材料	Nylon	触点数	50
接触件端接	Crimp	位数	50

产品信息

备注	Contacts Not Provided	类型	Receptacle Housing
连接器性别	:Receptacle	系列	AMPMODU MOD IV
产品子类型	Wire Housings	应用细节	Wire-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

3-87456-9?RQPN=3-87456-9
