点击放大查看

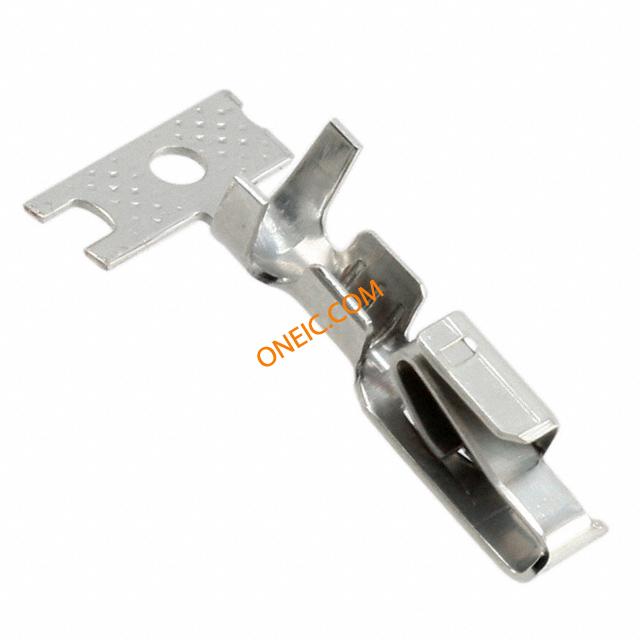

3-647406-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SL-156 SKT 24-18 PHBZ/SN CONN CONTACT SL156 18-24AWG SL-156,Contact,hooded rcp,0.9-0.2mm² Headers & Wire Housings SL-156 SKT 24-18 Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 24-18AWG SL-156,Contact,hoodedrcp,0.9-0.2mm² TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 HOODED CONTACT, LID LF |
| 分类 |
商业参数
| 其他名称 | A100548CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 6.5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.94 mm | 间距 | Not Required mm |
| 重量 | 0.005 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 18-24 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 13.3 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 80µin (2.03µm) | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | SL-156 | 已删除 | Compliant |
| 产品子类型 | Contacts | 适用产品/相关产品 | :SL-156 Housings |
环境参数
| 工作温度 | +105°C | 可用温度范围 | -55to+105°C |
| 结工作温度 | 105°C | ||
