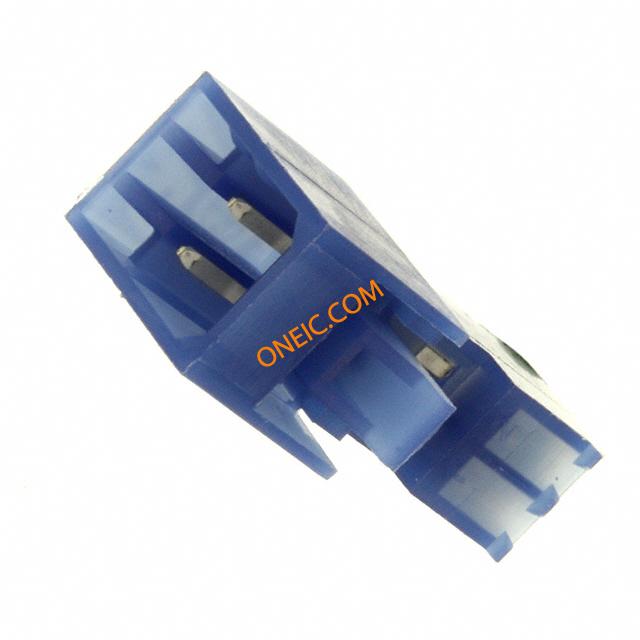

3-647002-2

点击放大查看

3-647002-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 26AWG MTA-100 Headers & Wire Housings 02P PSTD RCPT ASSY Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Cable plug, straight 2P, 3-647002-2, TE Connectivity 02P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量3000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC极数2
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Blue深度21.4 mm
间距2.54 mm高度12.54 mm
长度7.62 mm [ .3 in ]包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色5.77电缆类型分离式导线, 绞线
导线线规26 AWG端接方式IDT
触头类型Male Pin第二连接器Without
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
触点时序Without安装样式Wire
排数1壳体镀层Nickel
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度7.62 mm安装特性Without
包装数量300面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数2端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数2
第一连接器极性Male兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3
触头长度-柱电源安装孔直径带有
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.12-0.15² [26]静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注2 和 3 位置 MTA-100 柱形连接器（闭合端）无法配合带极化公端的 MTA-100 连接器。类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
放大器类型7.62连接类型Wire
跳过的位置数None

环境参数

工作温度-55C to 105C
