3-644512-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 5POS 24AWG .100 WHITE Headers & Wire Housings 05P MTA100 CONN ASSY Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount T/R Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 CONN ASSY TAPE LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 额定交流电压 | 250 | 连接器阻抗 | IDC |
| 最大额定电流 | 5 | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 高度 | 6.99 mm [ .275 in ] | 长度 | 12.7 mm [ .5 in ] |
| 包装方式 | Tape & Reel (TR) | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 出线方向 | 90° | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Polarizing Tab |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体镀层 | Nickel |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Tape Mounted on Reel | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 5 | 端接表面处理 | 带有 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 5 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | .762 µm, 30 µin |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
2-644486-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 5POS .100 TIN Headers & Wire Housings SHROUDED HEADER 5P Straight Post tin Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 5POS, 2.54MM 05P MTA100 SHRDED HDR ASSY SN
2-644488-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Header right angle 5 way Pin MTA-100 Headers & Wire Housings SHROUDED HEADER 5P Right Angle Post tin Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Headerrightangle5wayPinMTA-100 TE Connectivity MTA-100 系列 5路 2.54mm节距 直角 公 IDC 连接器 , 通孔 05P MTA100 SHRD HDR F/L R/A SN
644803-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 5POS TIN Headers & Wire Housings 05P MTA100 SHRD HDR ASSYT RA FL
644486-5
TE Connectivity / AMP
Headers & Wire Housings SHROUDED HEADER 5P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS TIN Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641214-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644875-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS R/A .100 TIN Headers & Wire Housings 05P MTA100 HDR ASSY F/L SP BND Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY F/L,SP BND
641213-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P Straight Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/ST 30AU
3-641214-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings HDR R/A .100 5P 30AU Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY PO/RA LF
3-644694-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings HDR 5 POS R/A TIN 05P MTA100 R/A HDR RETENTIVE
2-644803-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Headers & Wire Housings 05P SHRD HDR R/A MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, HEADER, R/A, 2.54MM, 5WAY 05P MTA100 SHRD HDR ASST RA FL
647106-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 TIN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA-100 HDR ASSY,SM,SN
3-641216-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 5POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASSY FL/RA LF
641211-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 5POS VERT .100 GOLD Headers & Wire Housings 05P MTA100 HDR ASSY PL STR 30A Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 HDR ASY PL STR 30A

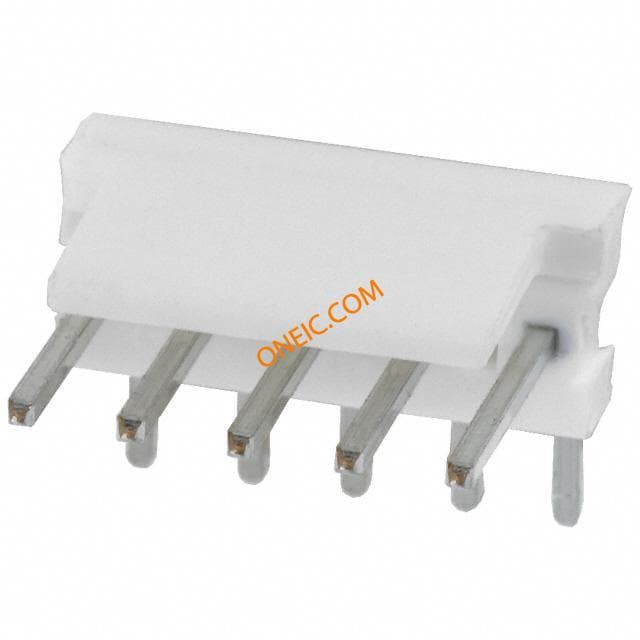

640455-5
