3-644502-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 CONN ASSY 18AWG LF 02P MTA156 CONN ASSY 18AWG LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
| 连接器阻抗 | IDC | 最大额定电流 | 7 A |
机械参数
| 颜色 | Black | 间距 | 3.96 mm |
| 高度 | 9.02 mm [ .355 in ] | 长度 | 7.92 mm [ .312 in ] |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 黑色 | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 18 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体镀层 | Nickel | 外壳材料（壳体） | 标准 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | 500 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 端接表面处理 | 带有 |
| 绝缘直径 | 2.41 mm [ .095 in ] | 位数 | 2 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 头 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 80µin (2.03µm) | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | .762 µm, 30 µin | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-156 | 产品特性 | Closed End |
| 可密封 | 否 | 产品子类型 | Connector Assemblies |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号
644752-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings HEADER ASSY 2 POS Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQSTRF/L 02P MTA156 HDR ASSY SQ STR F/L
640445-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:2 Pin header straight 2P, 640445-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL/STR SN

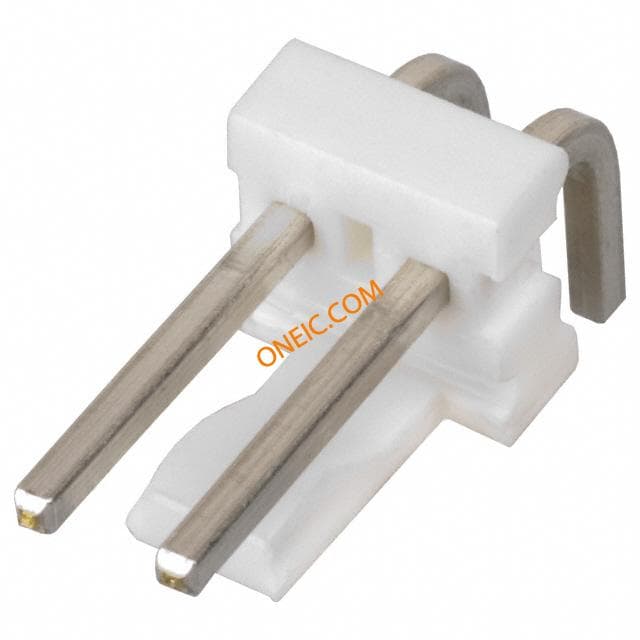

640387-2
