首页产品分类连接器解决方案板对板连接器板对板连接器3-644462-5

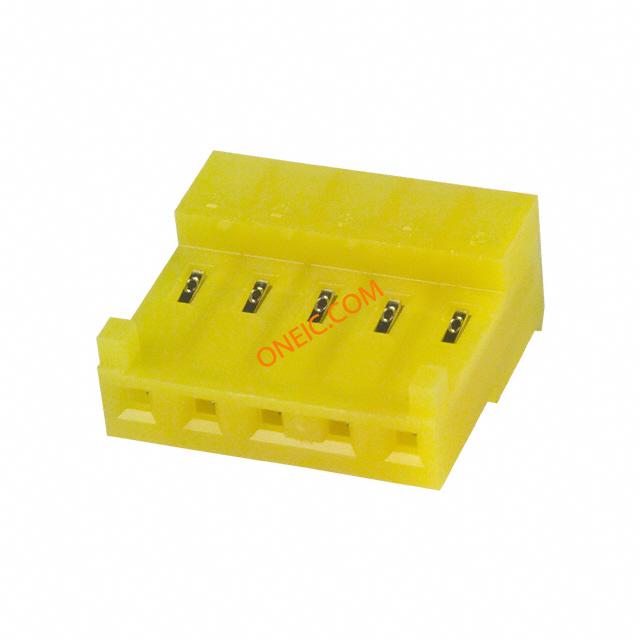

3-644462-5

点击放大查看

3-644462-5

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 5 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5POS 20AWG MTA156 Headers & Wire Housings 05P MTA156 CONN ASSY 20AWG LF 05P MTA156 CONN ASSY 20AWG LF 05P MTA156 CONN ASSY 20AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量250

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
接触电阻3 mohm连接器阻抗刺破式压接 (IDC)
最大额定电流7 A最小供电电压600VAC

机械参数

颜色Yellow深度9.02 mm
间距3.96 mm高度18.42 mm
长度19.81 mm [ .78 in ]密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色黄色电缆类型分离式导线
导线线规20 AWG端接方式IDT
触头类型Female Socket外壳颜色Yellow
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
安装样式Wire引脚数5
排数1壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度19.81 mm包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数5绝缘直径2.41 mm [ .095 in ]
位数5外壳尺寸-插件母端, 母端
兼容外壳尺寸（如TM-700等）MTA .156 公端安装孔直径带有
接触件表面处理 - 配合锡典型触点布局直插式
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有
护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别RCP
系列MTA-156产品特性Closed End, Polarizing Key
产品子类型Connector Assemblies安装类型Closed End
输出配置90°
