3-644020-8

点击放大查看

3-644020-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE Headers & Wire Housings 08P MTA100 CONN ASSY 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格500产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色White间距2.54 mm
高度6.99 mm [ .275 in ]长度20.32 mm [ .8 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规24 AWG端接方式IDT
触头类型Female Socket极化Polarizing Tab
第二连接器With外壳颜色White
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数8端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数8兼容外壳尺寸（如TM-700等）MTA .100 头
触头长度-柱电源安装孔直径带有
接触件表面处理 - 配合金典型触点布局2.54 [0.100]
接触镀层厚度30µin (0.76µm)恢复后小径No
线规或范围 - mm²0.2² [24]静电放电屏蔽带有
护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-644020-8?RQPN=3-644020-8

相关型号

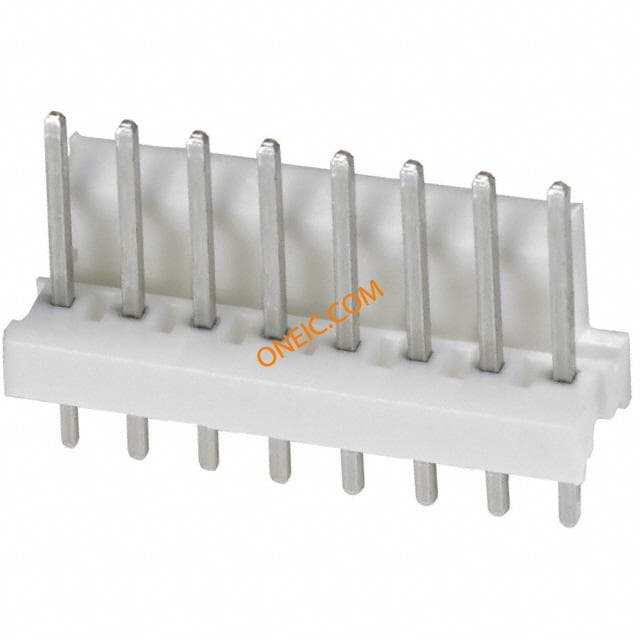

640456-8
