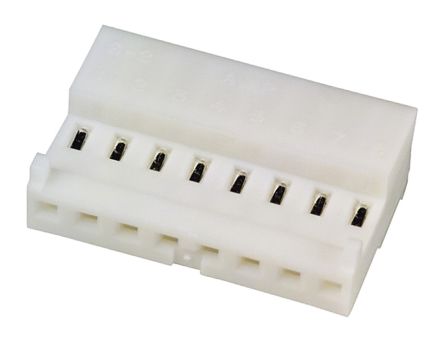

3-643814-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 24AWG MTA100 8w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 8P white tin 24 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR,RECEPTACLE,MTA-100,8POSITION,CLOSEDEND,WHITE Connector: wire-board; MTA-100; plug; female; PIN:8; polarized Cable socket, straight 8P, 3-643814-8, TE Connectivity TE Connectivity MTA-100 系列 8路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 08P MTA100 CONN ASSY POL RIB |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V ac | 极数 | 8 |
| 开关功能 | Ramp Lock | 供电电压 | 250 |
| 接触电阻 | 6 mohm | 额定交流电压 | 250 |
| 连接器阻抗 | IDC | 最大额定电流 | 5A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | polarized |
机械参数
| 颜色 | White | 深度 | 6.99 mm |
| 间距 | 2.54 mm | 高度 | 13.21 mm |
| 长度 | 20.32 | 重量 | 1.62 g |
| 材料（通用） | polyamide | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 出线方向 | 90° |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 24 AWG |
| 方向 | 直角 | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 极化 | Polarizing Tab | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Closed End | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 壳体镀层 | Nickel | 外壳材料（壳体） | 标准 |
| 连接器用途 | Receptacle | 高度（英寸） | 6.99 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 20.32 mm |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 尺寸/外形 | see | 端接排数 | IDC |
| 电缆端接方式 | IDC | 连接器 - 电缆 | plug |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 连接器颜色 | white | 配接方向 | With |
| 触点数 | 8 | 端接表面处理 | 带有 |
| 接触件端接 | Locking Lance | 绝缘直径 | 1.52 mm [ .06 in ] |
| 位数 | 8 | 第一连接器极性 | Female |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 表面贴装焊盘尺寸 | Without |
| 接触镀层厚度 | 80µin (2.03µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.2² [24] | 静电放电屏蔽 | 带有 |
| 护套（绝缘）厚度 | .762 µm, 30 µin | 第一连接器安装特征 | 1x8 |
产品信息
| SPG | 2000 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-100 |
| 产品特性 | Closed End | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 适配器系列 | MTA-100 | 放大器类型 | 20.32 |
| 连接类型 | Wire | 单元数量 | 1 |
| 工具类型/特性 | 59803-1 | 跳过的位置数 | None |
环境参数
| 工作温度 | +105°C | ||
