点击放大查看

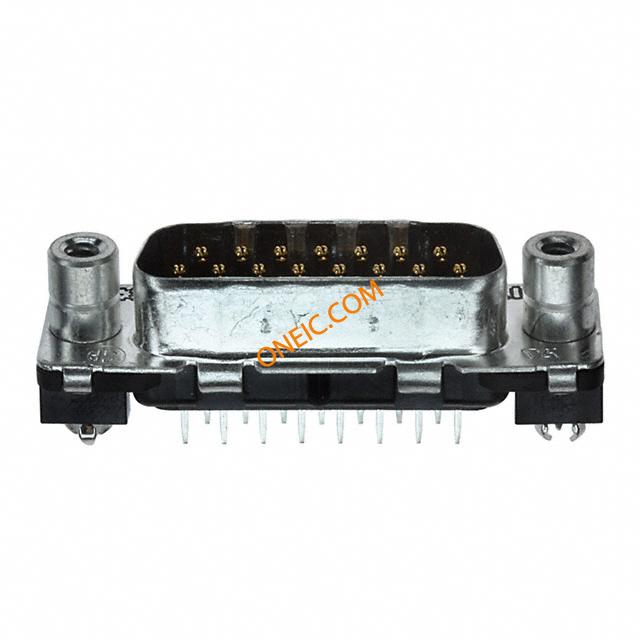

3-338310-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P HD20 PLUG ASSY Standard Board Mount Connectors CONN D-SUB PLUG VERT 15POS AMPLIMITE HDP-20 d-sub PCB plug, 15 pin Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub PLUG, D, SCREWLOCK, 15WAY AMPLIMITEHDP-20d-subPCBplug,15pin TE Connectivity AMPLIMITE HDP-20 系列 2.74mm 节距 15 路 直向 通孔安装 PCB D-sub 连接器 插头 15POS.HD20 PLUGASS |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | DIN 41652 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series |
| 供电电压 | :DIN 41652 Level 2 | 工作电压 | :250V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 深度 | 12.6mm |
| 间距 | 2.74 mm | 宽度 | 11.7mm |
| 高度 | 11.7 mm | 长度 | 39.2mm |
| 密封型 | No | 重量 | 0.001 |
| 镀层 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Tray | 外壳尺寸 | 2 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.063 [1.60] |
| 连接器样式 | D-Sub | 锁定特性 | Female Screwlocks, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 39.2 mm |
| 面板安装类型 | Without | 尺寸/外形 | 39.2 x 11.7 x 12.6mm |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 15 |
| 接触件端接 | :Solder | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 4.50 [0.177] | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | Steel | 外壳与棱镜材料 | :Steel |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Connector has boardlocks which have to be clinched onto the PCB for a perfect g | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HDP-20 |
| 产品特性 | Board Lock, Grounding Indents | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 端口数 | 1 Port |
环境参数
| 插拔次数 | :400 | 工作范围 | Level 2 |
| 工作温度 | -55°C ~ 105°C | ||
