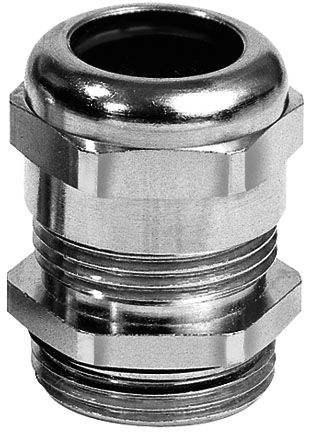

3-1102772-2

点击放大查看

3-1102772-2

制造商
TE Connectivity Ltd.
描述Cable Accessories Cable Fitting Metal Loose Piece Heavy Duty Connectors CONN CABLE FITTING M32 HD Connector, EMI cable fitting M32 Heavy Duty Power Connectors EMV.M32.MS HTS Connectors and Accessories HTS Connectors and Accessories Product Highlights:AccessoryAccessory Type = Cable Fitting - MetalCable Diameter Range = 15.00 - 21.00 mmThread Size = M32Packaging Method = Loose PieceSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDConnector,EMIcablefittingM32 TE Connectivity 电缆衬垫 EMV.M32.MS
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格5标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant

电气参数

输入端.591 – .827

机械参数

材料（通用）Metal包装方式盒
螺纹尺寸M32电缆直径15.0 - 21.0
包装数量Loose Piece主要材料Connector

产品信息

备注Protection against electro-magnetic interference.类型Cable Fitting
制造商全称HTS产品子类型Accessory
附件类型Cable Fitting - Metal规格说明M32 Thread
适用产品/相关产品Multiple Series

环境参数

液体防护No
