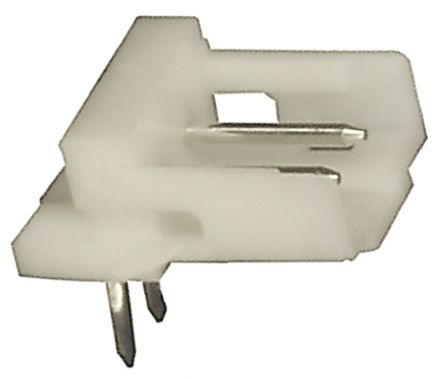

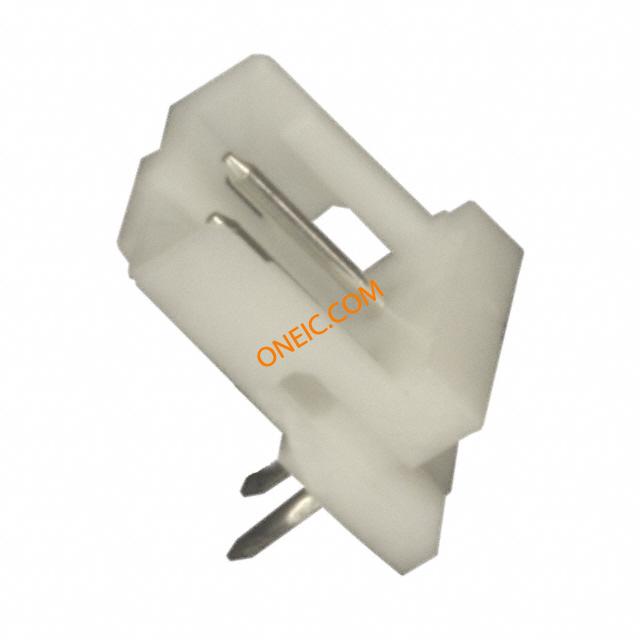

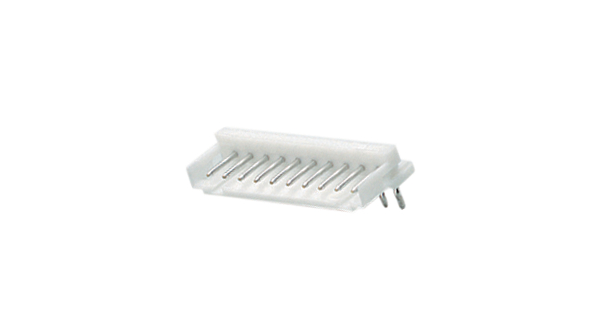

292253-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole 2mm AMP CT CONN HEADER 2POS R/A 2MM T/H TIN TE Connectivity 292253 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTHDRASSYH2PNAT Pin header 90° Pitch2 mm Poles 2 CT, 292253-2, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 CT CONN MT HDR ASSY H 2P NAT |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A98574 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | CSA, UL | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| UL档案号 | E28476 | 认证机构 | CSA,UL |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL 94V-0 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 极数 | 2 |
| 开关功能 | No | 供电电压 | 125 |
| 接触电阻 | 20 mohm | 最大额定电流 | 2A |
| 最小输入电压 | 125VDC|125VAC | 最小供电电压 | 125VDC/125VAC |
| 连接器类型 - 电压输入 | 圆柱体 | ||
机械参数
| 颜色 | Natural | 深度 | 8.8 mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 4 mm [ .157 in ] | 高度 | 4 mm |
| 长度 | 5.8 mm [ .228 in ] | 包装方式 | Bulk |
| 尾部类型 | Inline | 壳体颜色 | 自然 |
| 电缆类型 | 分离式导线 | 导线线规 | 28 – 22 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 4.5mm |
| 触点形状 | Round | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 行程角度 | Right |
| 连接器类型 | MT (Mass Termination) | 接触镀层 | Tin |
| 触点时序 | Without | 安装样式 | Thru Hole |
| 排数 | 1 | 壳体镀层 | Tin |
| 连接器用途 | Header | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Nylon 66 |
| 总长度 | 5.8 mm | 安装特性 | 扭结支脚 |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | WiretoBoard | 端接排数 | 焊接 |
| 插针孔直径 | 0.079" | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 排针方向 | Standard |
| 触点数 | 2 | 端接表面处理 | 不带 |
| 位数 | 2 | 第一连接器极性 | Male |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 0.85mm |
| 中心触点材料 | 2.00 [0.079] | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.177" (4.50mm) | 表面贴装焊盘尺寸 | Internal |
| 端子柱长度 | 4.5 mm [ .177 in ] | 接触镀层厚度 | 1 µm [ 39.37 µin ] |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 292253 | 覆盖范围 | 覆盖 |
| 产品特性 | Breakaway | 可密封 | 否 |
| 卷轴尺寸 | 500 | 制造商全称 | MTSeries |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 连接方式 | Wire-Board | 加载位置数 | All |
环境参数
| 工作温度 | -30C to 105C | 封装热阻 | .8 mm [ .031 – .063 in ] |
