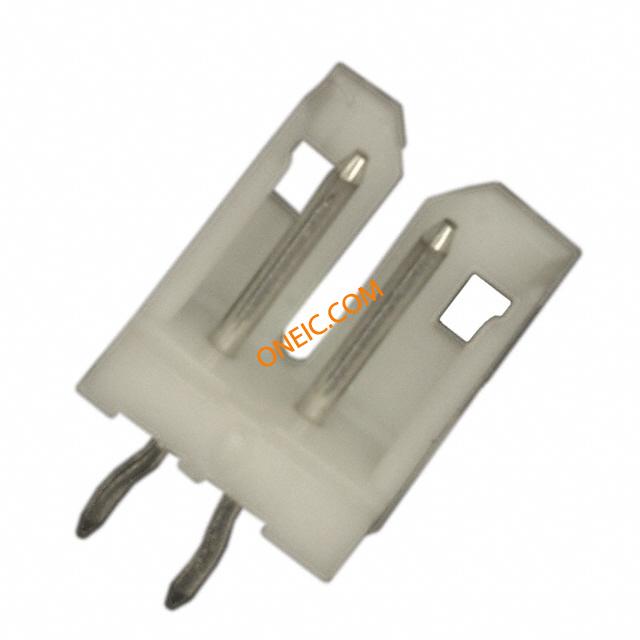

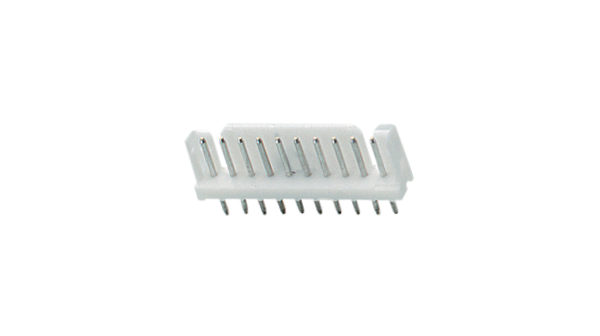

292161-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM T/H TE Connectivity 292161 Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 2P VERT HDR ASSY Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, WIRE-BOARD CONNECTOR, HEADER, 2POS, 2MM CTP/HDRASSYV2PW/KINK Pin header straight Pitch2 mm Poles 2 CT, 292161-2, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 CT P/HDR ASSY V 2P W/KINK NAT |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP CT Series | 额定电压 | 125 V ac/dc |
| 开关功能 | No | 接触电阻 | 20 mohm |
| 最大额定电流 | 2A | 最小供电电压 | 125VDC/125VAC |
机械参数
| 颜色 | Natural | 深度 | 3.6 mm |
| 间距 | 2 mm | 高度 | 6.8 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 28-26 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 3.2mm |
| 外壳颜色 | Natural | 安装类型 | Vertical |
| 行程角度 | Straight | 连接器类型 | MT (Mass Termination) |
| 接触镀层 | Tin | 安装样式 | Thru Hole |
| 排数 | 1 | 连接器用途 | Header |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 5.8 mm | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.079" |
| 端接样式 | Through Hole | 排针方向 | Standard |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
| 位数 | 2 | 中心触点材料 | 2.00 [0.079] |
| 接触长度 - 配合 | 0.177" (4.50mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 292161 | 制造商全称 | MTSeries |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -30C to 105C | ||
