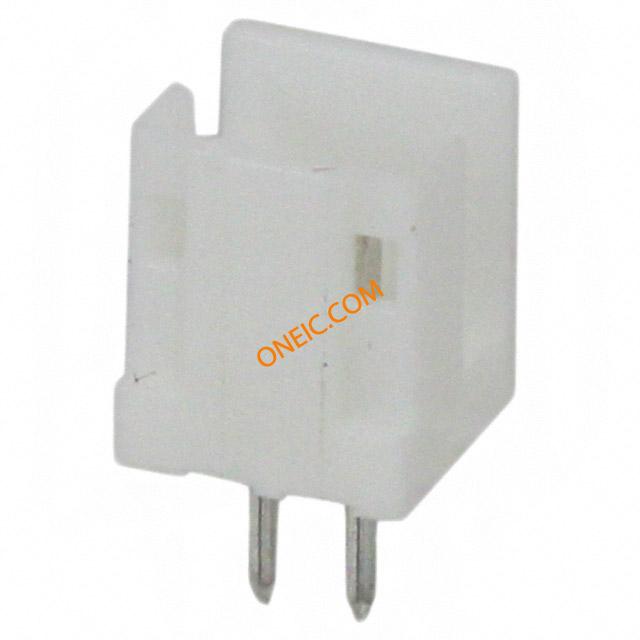

292133-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 2P W/O KIN Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 2P W/O KIN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | UL 94V-0 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 125 V | 开关功能 | No |
| 供电电压 | 125 | 最大额定电流 | 4 A |
| 连接器类型 - 电压输入 | 圆柱体 | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 形状 | 矩形 | 宽度 | 5.8 mm [ .228 in ] |
| 高度 | 6.8 mm [ .267 in ] | 长度 | 5.8 mm [ .228 in ] |
| 包装方式 | Bulk | 尾部类型 | Inline |
| 壳体颜色 | 自然 | 电缆类型 | 分离式导线 |
| 导线线规 | 28-22 | 端接方式 | Solder |
| 触头类型 | Male Pin | 触点形状 | Rounded |
| 外壳颜色 | Natural | 安装类型 | Vertical |
| 连接器类型 | Crimp, MT (Mass Termination) | 接触镀层 | Pre-tinned |
| 触点时序 | Without | 安装样式 | Thru Hole |
| 排数 | 1 | 壳体镀层 | Tin |
| 连接器用途 | Header | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 2.00 [0.079] | 包装数量 | 1000 |
| 面板安装类型 | Without | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 排针方向 | Box |
| 触点数 | 2 | 端接表面处理 | 不带 |
| 位数 | 2 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.165" (4.19mm) | 表面贴装焊盘尺寸 | Internal |
| 端子柱长度 | 4.2 mm [ .165 in ] | 接触镀层厚度 | 1 µm [ 39.37 µin ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 可密封 | 否 | 卷轴尺寸 | 1000 |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 工作温度 | - 40 C to + 105 C | 封装热阻 | .8 mm [ .031 – .063 in ] |
文档与媒体
相关型号

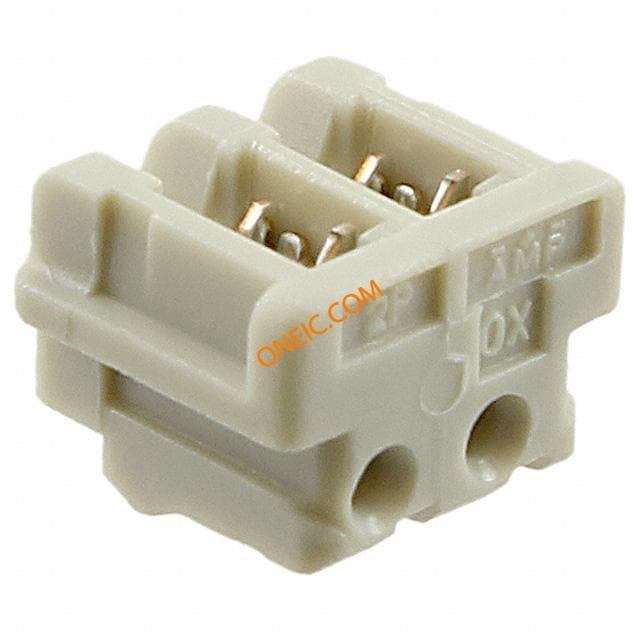

2-179694-2
