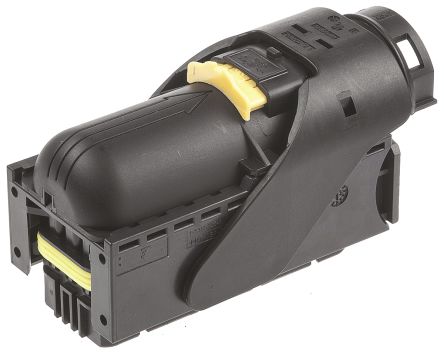

284743-1
| 制造商 | TE Connectivity Ltd. |

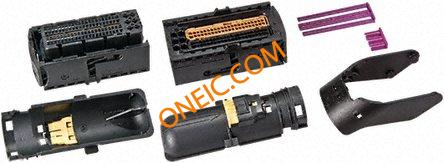

| 描述 | Conn Housing RCP 94 POS Crimp RA Cable Mount Loose Piece Automotive Connectors 94 POS CONN+COVER AND CPS KIT MQS - Connectors 94 POS CONN+COVER AND CPS KIT Connector 94 way Rec Quadlock Conn Housing RCP 94 POS Crimp RA Cable Mount Loose Piece Search Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, Connector94wayRecQuadlock TE Connectivity Micro Quadlock System 系列 94路 电缆安装 黑色，棕色 母 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 80 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 12, 24 | 供电电压 | 24 |
| 连接器阻抗 | 是 | ||
机械参数
| 颜色 | Black | 深度 | 74.3mm |
| 间距 | 3, 5.2 | 宽度 | 46mm |
| 高度 | 97mm | 长度 | 97 mm [ 3.819 in ] |
| 包装方式 | Bulk | 出线方向 | 否 |
| 触头类型 | Female Socket | 柱间距 | .118, .205 |
| 安装类型 | Right Angle | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 4 |
| 端子样式 | Yes | 锁定特性 | Integrated in Housing |
| 壳体材料 | Polyamide (PA) | 安装特性 | No |
| 主要材料 | Receptacle | 连接器 - 电缆 | No |
| 端接样式 | Crimp | 连接器颜色 | Black, Brown |
| 触点数 | 94 | 接触件端接 | Crimp |
| 位数 | 94 | 连接器 - AC输入 | .63, 1.5, 2.8 |
| 触点镀层 - 柱 | .025, .059, .11 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MQS |
| 产品特性 | Cap (Cover) | 极性 | 是 |
| 可密封 | 是 | 可维修 | Yes |
| 制造商全称 | MQSSeries | 其他规格 | GEN |
| 应用细节 | Signal | ||
环境参数
| 工作温度 | -40 – 125 °C [ -40 – 257 °F ] | ||
