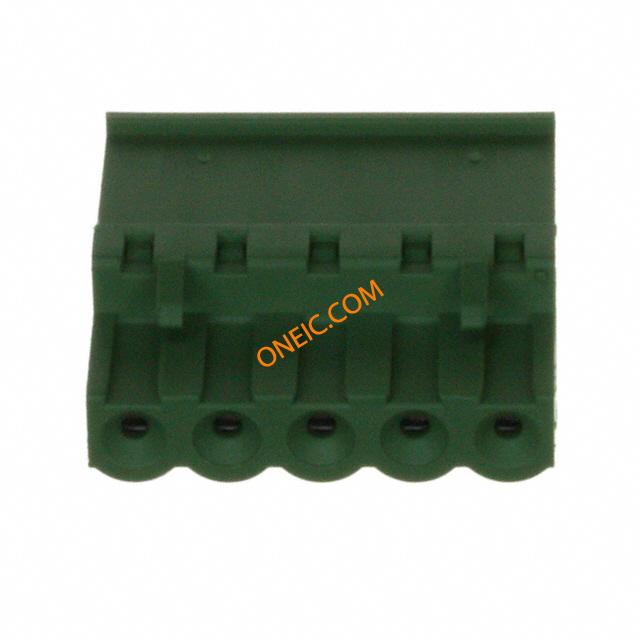

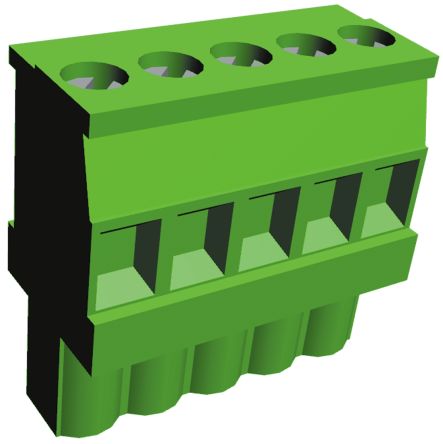

284041-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 5 POS VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 5POS 5.08MM Conn Terminal Block F 5 POS 5.08mm Screw ST Cable Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 5 路 公 绿色 垂直 插头, 印刷电路板安装, 夹紧螺钉端接 TERMINAL BLOCK VERTICAL PLUG S |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 深度 | 25mm |
| 间距 | 5.08 mm | 宽度 | 12.5mm |
| 长度 | 25.4mm | 材料（通用） | 尼龙 |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 侧 | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 方向 | 垂直 | 端接方式 | Screw |
| 第二连接器 | 否 | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Plug (left-hand) |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 螺丝材料 | Brass |
| 插入件材料 | 磷青铜 | 插头进线方向 | 270° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 150 | 端接排数 | 夹紧螺钉 |
| 连接器间距 | Side | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Plug, Female Sockets |
| 端子螺钉表面处理 | 镍 | 螺纹/螺钉/孔尺寸 | 黄铜 |
| 中心触点材料 | 5.08 [0.200] | 螺钉材料 - 镀层 | Nickel |
| 线规或范围 - AWG | 30-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | Buchanan | 产品特性 | Retention Latches (Non-Wire Side) |
| 制造商全称 | Buchanan | 产品子类型 | Connector |
| 侧面可堆叠 | Yes | 层数 | 1 |
| 级数 | 不带 | 互连系统 | Without |
| 每层位数 | 5 | 并排堆叠 | 是 |
文档与媒体
相关型号
282825-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole Barrier Terminal Blocks HDR 5P VERT 5.08mm Terminal Block Connectors TERM BLOCK HDR 5POS VERT 5.08MM Conn Shrouded Header HDR 5 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER,ASSY90 5P.5,
796638-5
te connectivity / amp

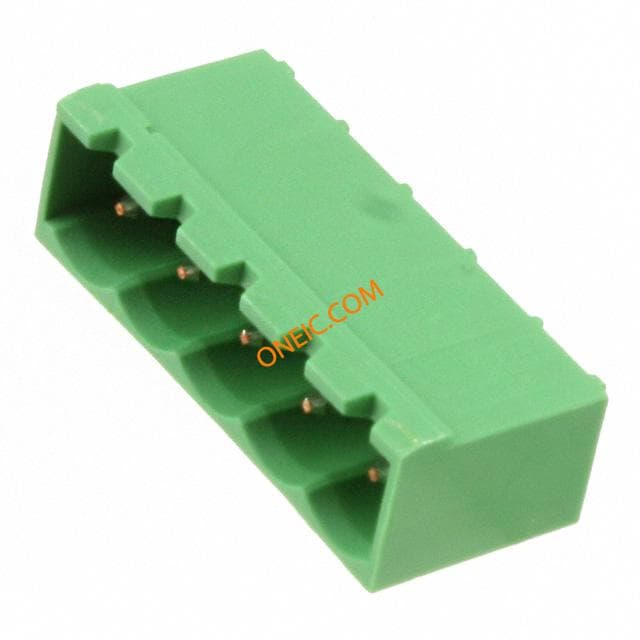

Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 5.08MM Termi-Block Header 5 way pcb r/a Pluggable Terminal Blocks 5.08MM RA HDR 5P Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end HEADER, 5.08MM, 5WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;5Pole;5.08mmPitch;Buchanan Pluggable terminal block; socket; male; angled 90°; 5.08mm; 15A TE Connectivity Buchanan 系列 5.08mm节距 5路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 5POS 5.08MM CE R/A HDR,TRM BLK
