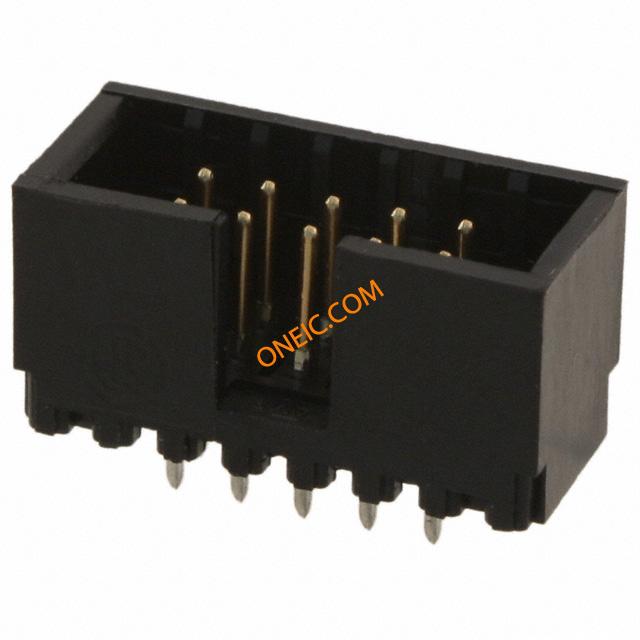

点击放大查看
281271-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS GOLD .100 HEADER, THT, VERTICAL, 2.54MM, 10WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | Center | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Pin Header | 接触镀层 | Gold Over Nickel |
| 安装样式 | Thru Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Brass | 壳体材料 | Thermoplastic Polyester |
| 配接方向 | With | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 端子柱长度 | 3.10 [0.122] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | ||
